Rear Wheel Tread Adjustment - Rack-and-Pinion Axle (Tractors 6170R to 6210R)

IMPORTANT: Comply with tread adjustment instructions, and tighten wheel bolts. See Tighten Rear Wheel Bolts (with Rack-and-Pinion Axle).

IMPORTANT: After adjusting tread, check that the wheels can turn freely.

Do NOT let tires come into contact with draft links or lift links. The gap between lift links and tires can be increased by installing the lift links in the front holes of the draft links.

When draft links are raised (even if no implement is attached), the hydraulic or mechanical stabilizer bars must be locked.

If there is still contact with the draft links or lift links despite all these measures, tread width must be increased.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

NOTE: The tread widths shown here apply for the long rack-and-pinion axle.

For maximum tread width with medium-sized and short rack-and-pinion axles, the following values must be subtracted:

• Medium-sized rack-and-pinion axles: 206 mm (8.11 in.)

• Short rack-and-pinion axles: 462 mm (18.19 in.)

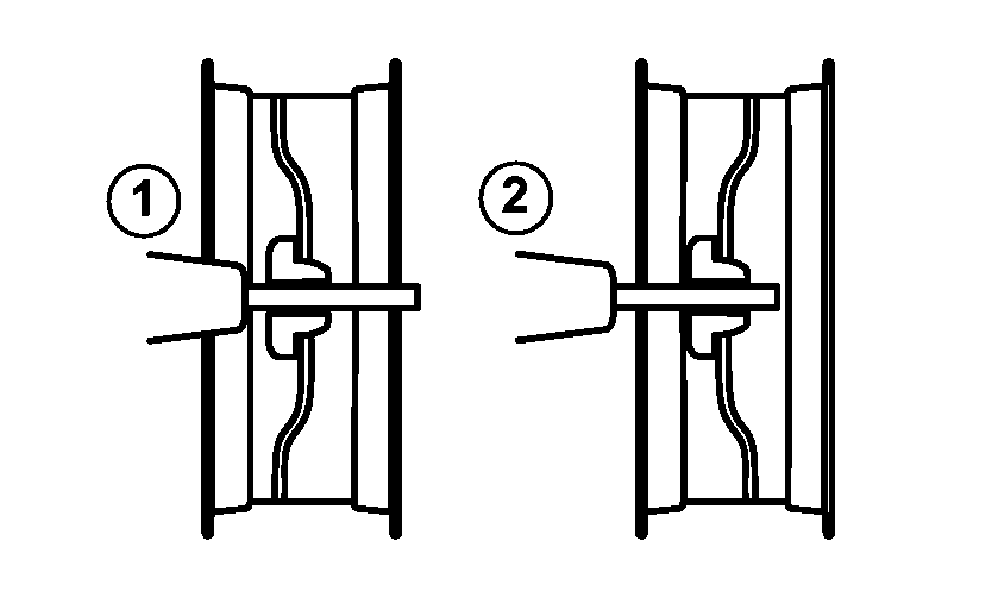

LX1056800-UN-29OCT12

Rear Wheel Tread Adjustment with Rims for 2 Positions - Rack-and-Pinion Axle

	Tread width setting (rear wheels) Arrangement of rim and wheel disk				Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:	Minimum (1)	Maximum (2)		Tires:	Minimum (1)	Maximum (2)
18.4R46 -R2	1614 mm	2764 mm		520/85R42 -R1	1637 mm	2764 mm
	(63.54 in.)	(108.82 in.)			(64.45 in.)	(108.82 in.)
320/90R54	1618 mm	2768 mm		520/85R42 -R2	1650 mm	2764 mm
	(63.70 in.)	(108.98 in.)			(64.96 in.)	(108.82 in.)
380/90R50	1614 mm	2764 mm		620/70R42	1755 mm	2764 mm
	(63.54 in.)	(108.82 in.)			(69.09 in.)	(108.82 in.)
480/80R46	1614 mm	2764 mm		650/85R38	1777 mm	2764 mm
	(63.54 in.)	(108.82 in.)			(69.96 in.)	(108.82 in.)
480/80R46 -R1	1614 mm	2764 mm		710/70R38	1796 mm	2764 mm
	(63.54 in.)	(108.82 in.)			(70.71 in.)	(108.82 in.)
520/85R42	1650 mm	2764 mm
	(64.96 in.)	(108.82 in.)
