Front-Wheel Tread Adjustment with Rims for 4 Positions - 6140R Tractor

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 4 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1056775
LX1056775-UN-14NOV12



Tread width setting
on delivery

Tread width setting (front wheels)

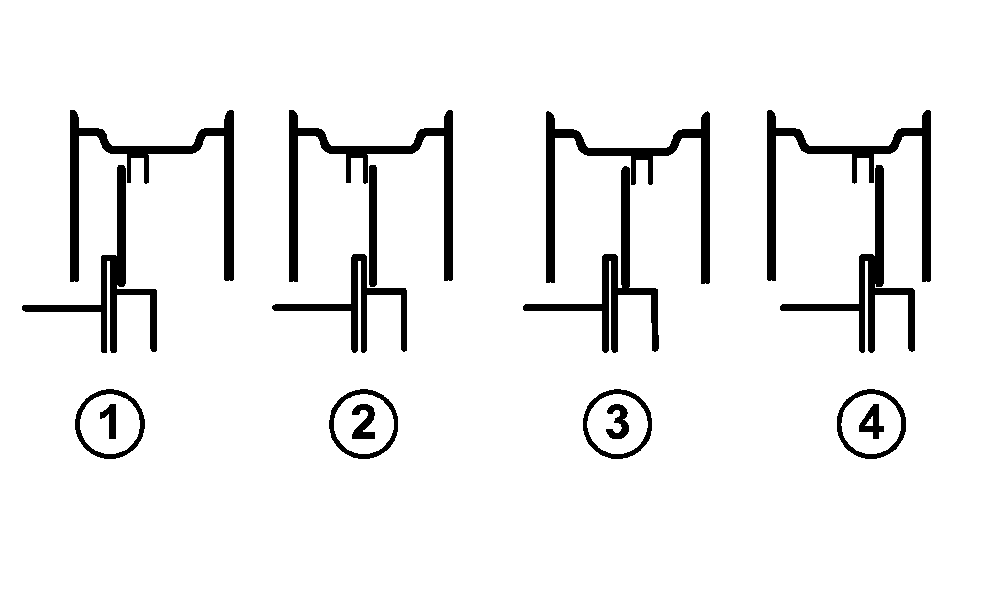

Arrangement of rim and wheel dish

Tires:

1

2

3

4

16.9R26 -R1

1818 mm

1920 mm

1818 mm

1716 mm

1616 mm

(71.57 in.)

(75.59 in.)

(71.57 in.)

(67.56 in.)

(63.62 in.)

OULXA64,0002CF8-19-20130701
