Rear Wheel Tread Adjustment with Rims for 16 Positions - Flanged Axle (Tractor 6150RH)

LX1053414-UN-16MAR12

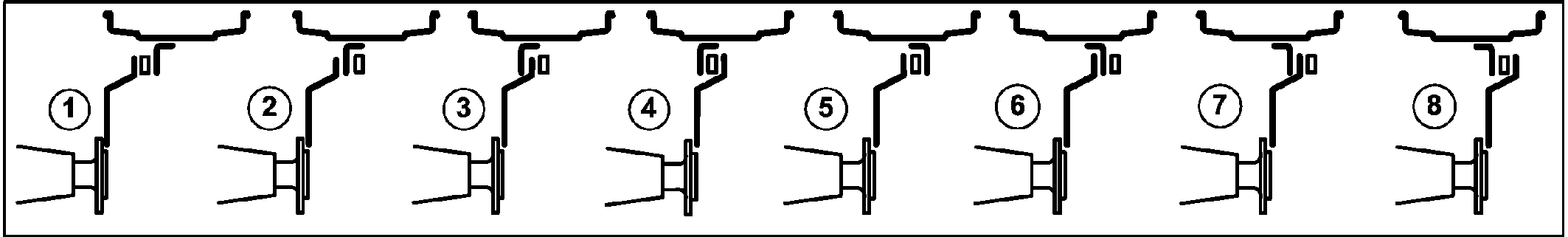

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
320/90R50	1756 mm	2032 mm	2002 mm	1960 mm	1930 mm	1828 mm	1800 mm	1756 mm	1726 mm
	(69.13 in.)	(80.00 in.)	(78.82 in.)	(77.17 in.)	(75.98 in.)	(71.97 in.)	(70.87 in.)	(69.13 in.)	(67.95 in.)
** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

LX1053415-UN-16MAR12

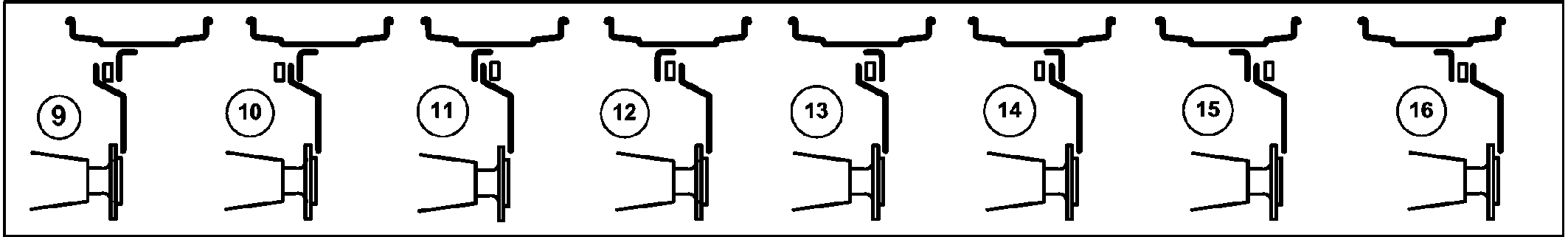

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		9	10	11	12	13	14	15	16
320/90R50	1756 mm	1626 mm	1596 mm	1552 mm	1524 mm	—**	—**	—**	—**
	(69.13 in.)	(64.02 in.)	(62.83 in.)	(61.10 in.)	(60.00 in.)
** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.
