Parking the Tractor (Tractors with AutoPowr™)

LX1037175-UN-06JUN06

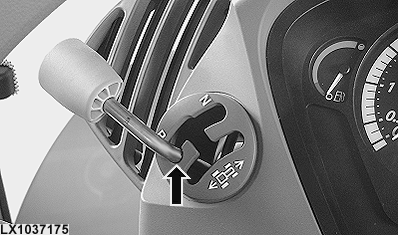

Engage park lock when parked or operating the tractor from a stationary position.

IMPORTANT: Engage park lock only when the tractor is stationary.

IMPORTANT: On tractors with air brakes, engaging park lock activates the trailer brake.

NOTE: In extremely cold temperatures, it may take up to 20 seconds for park to engage.

When engaging park lock on slopes, remember to actuate the brake pedals as well.

An acoustic alarm warns the operator if he vacates his seat with park disengaged.
