SiriusXM™ Home Page for Premium Radio on the CommandCenter™

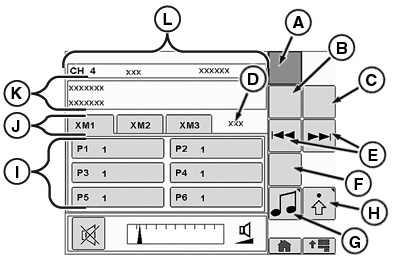

RXA0113243-UN-27JAN11

XM Home Page

A - (CAT) Category Mode

B - (CAT-) Previous Category

C - (CAT+) Next Category

D - (CAT) Category Indicator

E - Previous Channel/Next Channel

F - Band

G - Select Source

H - Audio Settings

I - Presets 1—6

J - XM 1—3 Tabs

K - Display Area 1

L - Display Area 2

Category search mode is activated using the Category Mode enable/disable softkey (A). To cycle through categories use the Previous Category (B) and Next Category (C) softkeys. When Category Mode is activated, Category Indicator (D) will be shown. To cycle through channels use previous/next channel (E). Six presets can be programmed in the Preset Stations softkeys (I). To change a preset, select and hold the preset for 3 seconds. Three banks of presets are available. Cycle through the banks using the tabs (J).

Band softkey (F) allows operator to cycle through radio tuner sources (AM, FM, Weather and XM). The Select Source softkey (G) gives the operator the ability to cycle through radio tuner sources and external source (see Premium Radio Source Select on the CommandCenter™ in this section).

In Display Area 1 (K) artist name and song name will be visible. In Display Area 2 (L) channel number, preset number, category name, and channel name will be visible. When Category Mode is activated, Category Name will be shown in Display Area 2 (L).
