Weights, front, installing

LX1046219-UN-22JUN11

LX1046220-UN-22JUN11

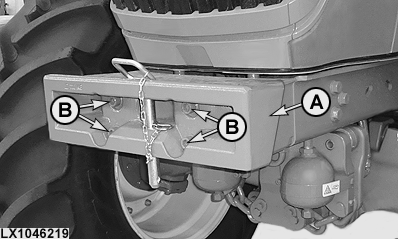

A - Basic Weight

B - Attaching screws

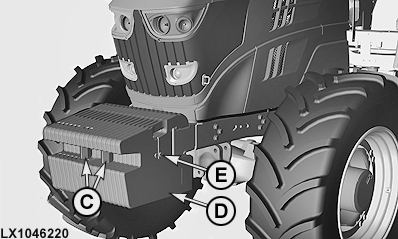

C - Jaw

D - Ballasting

E - Screws

One basic weight (A) and up to 18 additional weights (E) may be installed.

IMPORTANT: Tighten attaching screws (B) on basic weight (A) to 600 Nm (440 lb.-ft.) and screws (D) of additional weights (E) to 230 Nm (170 lb.-ft.)..

Up to 18 additional weights (D) may be installed on the tractor.

Each additional weight weighs 50 kg (110 lb). Each increase in weight of 10 kg (22 lb) increases the front axle load by approx. 12 kg (26.5 lb).

IMPORTANT: When installing six or more additional weights, they have to be installed to form a jaw (C).

The jaw hitch should be used for shunting and towing on hard-surfaced roads only.
