Dimensions

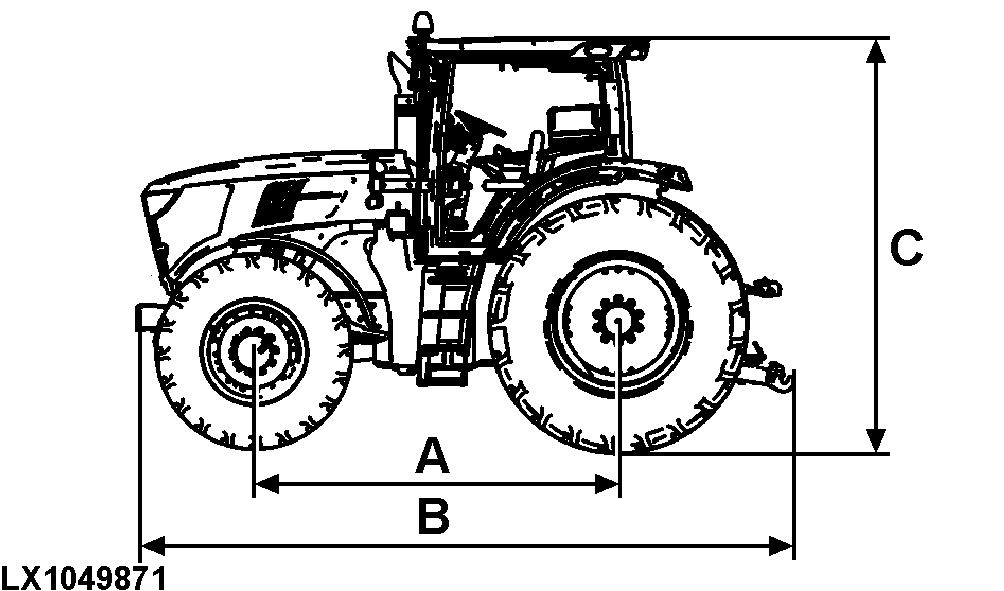

LX1049871-UN-26JAN11

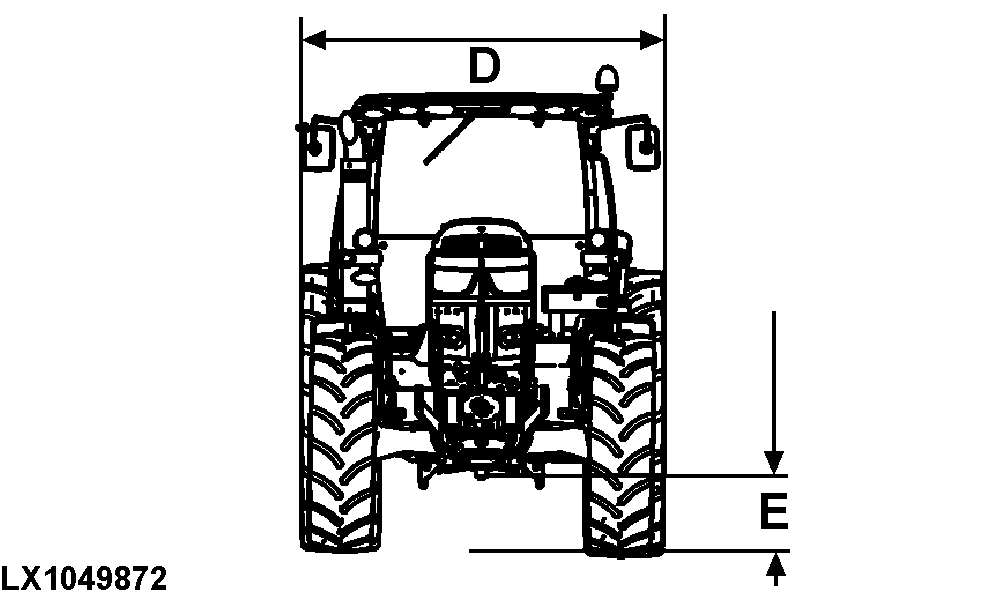

LX1049872-UN-26JAN11

	6105R to 6125R	6130R
A - Wheelbase ..............	2580 mm (101.6 in.)	2765 mm (108.9 in.)
B - Length
• Basic weight to draft link in horizontal position ..............	4542 mm (178.8 in.)	4895 mm (192.7 in.)
• Front weight to draft link in horizontal position ..............	4964 mm (195.4 in.)	5317 mm (209.3 in.)
C - Height
- from ground to cab roof (without beacon light)
• cab NOT suspended ..............	2797 mm (110.1 in.)	2937 mm (115.6 in.)
• suspended cab in mid-position ..............	2877 mm (113.3 in.)	2937 mm (115.6 in.)
• minimum total height ..............	2672 mm (105.2 in.)	2862 mm (112.7 in.)
• maximum total height ..............	2887 mm (113.7 in.)	2937 mm (115.6 in.)
- from center of rear axle to cab roof (without beacon light)
• cab NOT suspended ..............	1972 mm (77.6 in.)	2062 mm (81.2 in.)
• suspended cab in mid-position ..............	2062 mm (113.7 in.)	2062 mm (81.2 in.)
D - Width
• front axle - flange to flange ..............	1680 mm (66.1 in.)	1780 mm (70.1 in.)
• front axle - maximum tread width without extension ..............	2015 mm (79.3 in.)	2250 mm (88.6 in.)
• rear axle - flange to flange ..............	1552 mm (61.1 in.)	1664 mm (65.5 in.)
• maximum width for road travel ..............	2550 mm (100.4 in.)	2550 mm (100.4 in.)
E - Ground clearance ..............	500 mm (19.7 in.)	530 mm (20.9 in.)
All measurements are made with the following tires
• tires on front wheels ..............	540/65 R24	540/65 R28
• Diameter ..............	134 cm (52.8 in.)	144 cm (56.2 in.)
• tires on rear wheels ..............	600/65 R38	650/65 R38
• Diameter ..............	178 cm (70.1 in.)	185 cm (72.8 in.)
