Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
General information
LX1050130-UN-08MAR11
LX1050131-UN-16FEB11
IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.
IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.
The fuse and relay box of the Load Center Secondary (LCS) circuit is located in the right console, in the footwell.
Remove cover of fuse and relay box (LCS).

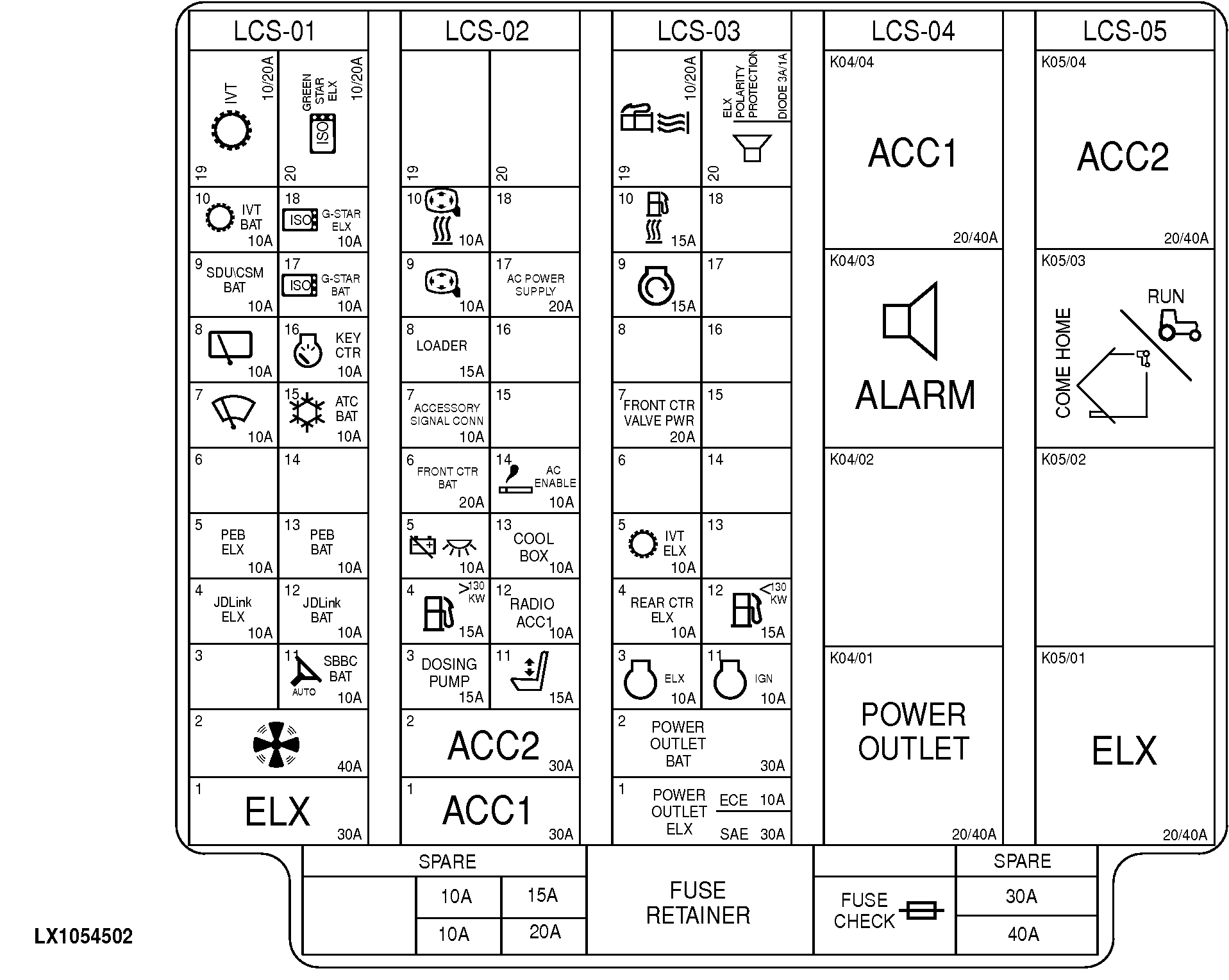

Summary of fuse and relay box (LCS) with AutoPowr™/IVT™ transmission
LX1054502-UN-22DEC11
LCS-01 - Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-02 - Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-03 - Fuses and Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-04 - Relays (LCS) with AutoPowr™/IVT™ Transmission
LCS-05 - Relays (LCS) with AutoPowr™/IVT™ Transmission
FUSE CHECK - Fuse Tester
FUSE RETAINER - Retainer for Tool for Changing Fuses (Suitable for all Types of Fuse)
SPARE - Spare Fuses

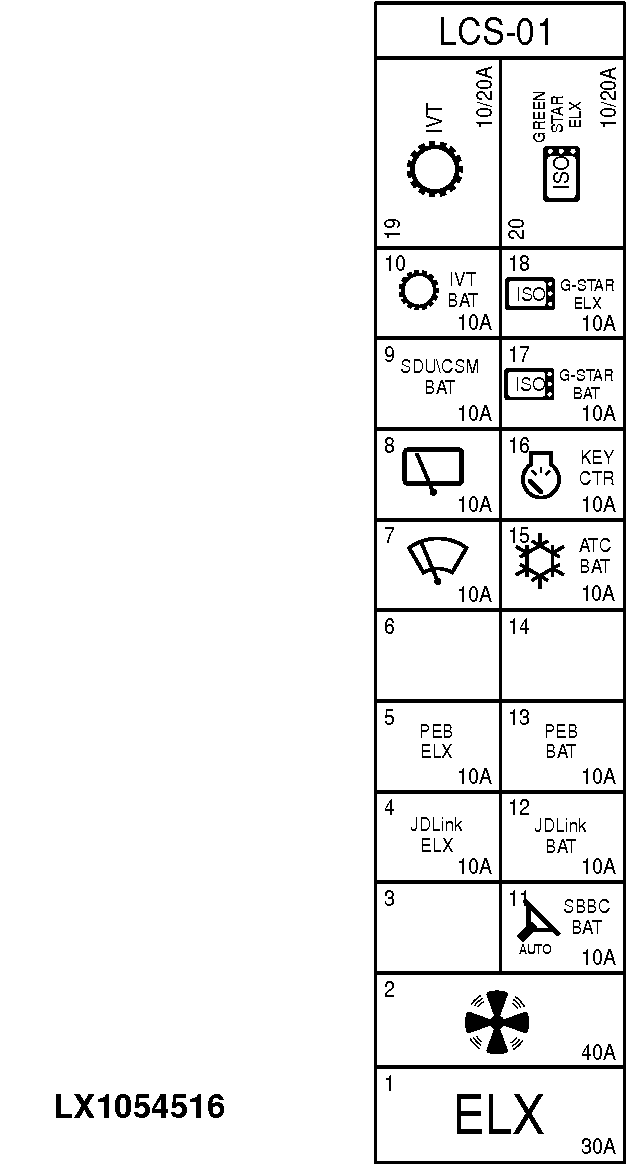

LCS-01 - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX1054516-UN-22DEC11
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F01LCS/01 |
30 amps |
Power supply to electronics (ELX) |
|
F01LCS/02 |
40 amps |
Recirculation fan motor |
|
F01LCS/03 |
— |
Not used |
|
F01LCS/04 |
10 amps |
Control unit for telematics (JDLink™/Service ADVISOR™ Remote) |
|
F01LCS/05 |
— |
Not used (option currently not available) |
|
F01LCS/06 |
— |
Not used |
|
F01LCS/07 |
10 amps |
Windshield wiper motor |
|
F01LCS/08 |
10 amps |
Rear window wiper motor |
|
F01LCS/09 |
10 amps |
Control unit for CommandCenter™, control unit for cab switch module, service socket (CAN BUS) |
|
F01LCS/10 |
10 amps |
Transmission control unit (AutoPowr™/IVT™) |
|
F01LCS/11 |
10 amps |
Steering control unit (AutoTrac™) |
|
F01LCS/12 |
10 amps |
Control unit for telematics (JDLink™/Service ADVISOR™ Remote) |
|
F01LCS/13 |
— |
Not used (option currently not available) |
|
F01LCS/14 |
— |
Not used |
|
F01LCS/15 |
10 amps |
Control unit for ClimaTrak™, radio or control unit for air-conditioning system, radio |
|
F01LCS/16 |
10 amps |
Instrument unit, immobilizer control unit |
|
F01LCS/17 |
10 amps |
GreenStar™ (AMS) |
|
F01LCS/18 |
10 amps |
GreenStar™ (AMS) |
|
Relay no. |
Capacity (amps) |
Designation |
|
K01LCS/19 |
10/20 amps |
Transmission enable relay (AutoPowr™/IVT™ transmission) |
|
K01LCS/20 |
10/20 amps |
Relay for GreenStar™ (AMS) |

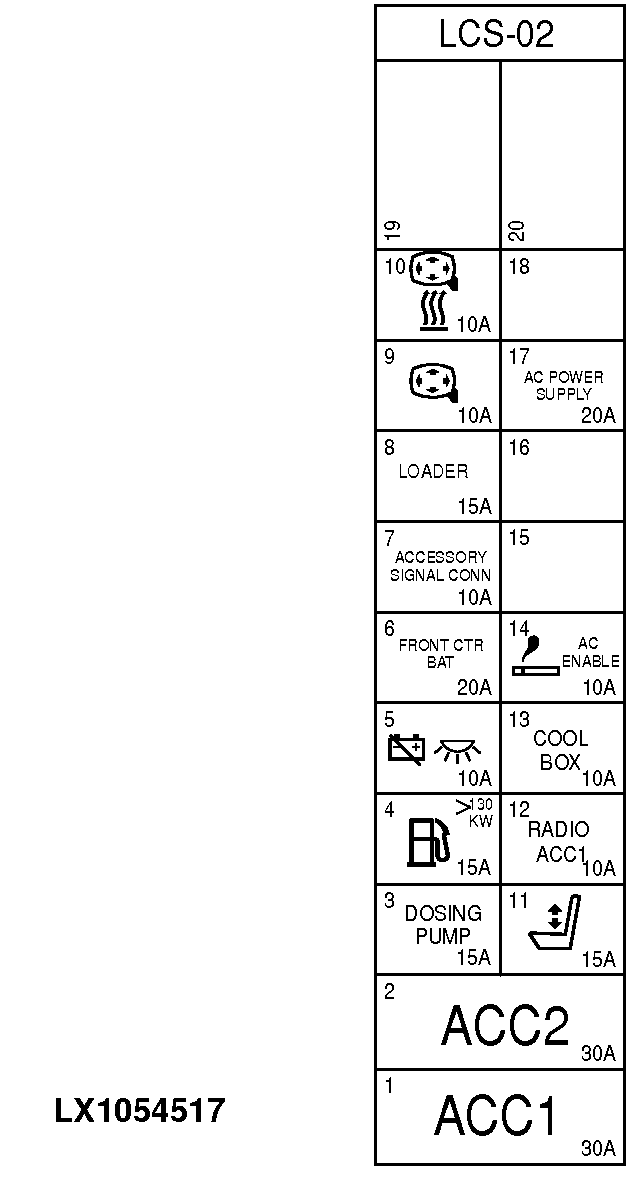

LCS-02 - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX1054517-UN-22DEC11
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F02LCS/01 |
30 amps |
Power supply for accessories (ACC1) |
|
F02LCS/02 |
30 amps |
Power supply for accessories (ACC2) |
|
F02LCS/03 |
— |
Not used |
|
F02LCS/04 |
— |
Not used |
|
F02LCS/05 |
10 amps |
Battery cut-off switch, access step lighting |
|
F02LCS/06 |
20 amps |
Front chassis control unit |
|
F02LCS/07 |
10 amps |
Connector for accessories (X37F-3), signal socket |
|
F02LCS/08 |
15 amps |
Connector for front loader (X37F), electro-hydraulic pick-up hitch (E-PUH) |
|
F02LCS/09 |
10 amps |
Electrical outside mirrors (adjustment) |
|
F02LCS/10 |
10 amps |
Electrical outside mirrors (heating) |
|
F02LCS/11 |
15 amps |
Operator's seat |
|
F02LCS/12 |
10 amps |
Radio |
|
F02LCS/13 |
10 amps |
Electrical cooling compartment |
|
F02LCS/14 |
10 amps |
Cigarette lighter, 230/115-volt current converter, video camera |
|
F02LCS/15 |
— |
Not used |
|
F02LCS/16 |
— |
Not used |
|
F02LCS/17 |
20 amps |
230/115-volt current converter |
|
F02LCS/18 |
— |
Not used |
|
Relay no. |
Capacity (amps) |
Designation |
|
K02LCS/19 |
— |
Not used |
|
K02LCS/20 |
— |
Not used |

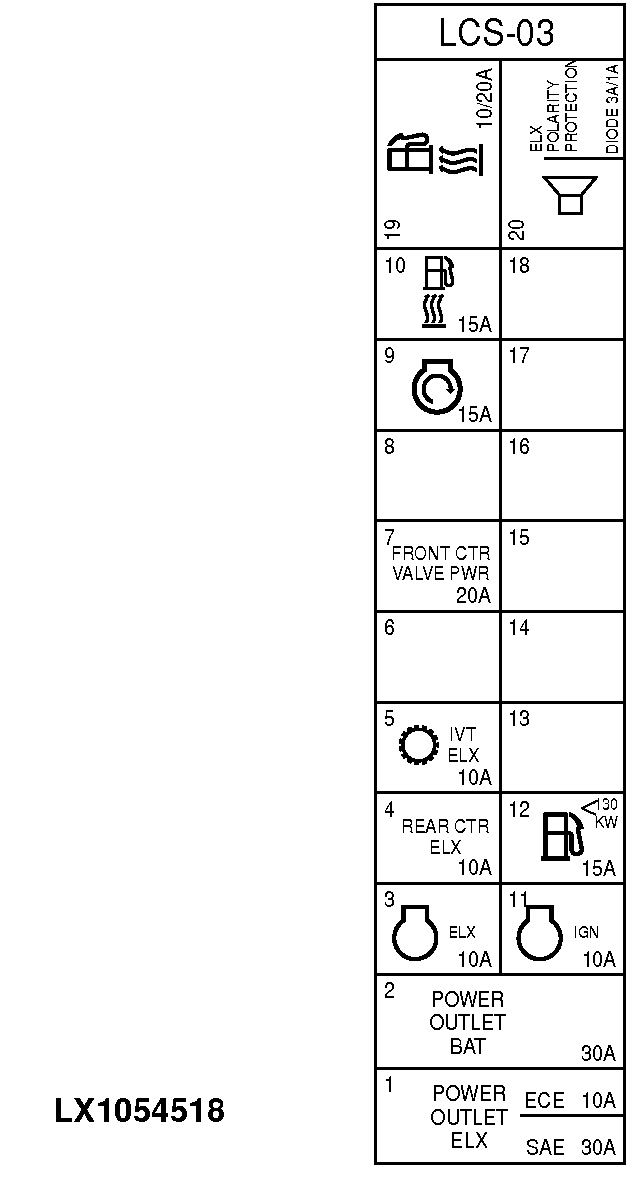

LCS-03 - Fuses and relays (LCS) with AutoPowr™/IVT™ transmission
LX1054518-UN-22DEC11
|
Fuse no. |
Capacity (amps) |
Consumer |
|---|---|---|
|
F03LCS/01 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
10 amps |
3-terminal socket, power outlet strip (ECE) |
|
|
F03LCS/02 |
30 amps |
3-terminal socket, power outlet strip, 7-terminal socket (SAE) |
|
30 amps |
3-terminal socket, power outlet strip (ECE) |
|
|
F03LCS/03 |
10 amps |
Engine control unit ECU, immobilizer control unit |
|
F03LCS/04 |
10 amps |
Rear chassis control unit |
|
F03LCS/05 |
10 amps |
Transmission control unit (AutoPowr™/IVT™) |
|
F03LCS/06 |
— |
Not used |
|
F03LCS/07 |
20 amps |
Power supply of front chassis control unit (solenoid valves, E-ICV stepper motors) |
|
F03LCS/08 |
— |
Not used |
|
F03LCS/09 |
15 amps |
Ignition switch |
|
F03LCS/10 |
15 amps |
Fuel preheater |
|
F03LCS/11 |
10 amps |
Engine control unit ECU |
|
F03LCS/12 |
10 amps |
Relay for battery cut-off switch |
|
F03LCS/13 |
15 amps |
Fuel transfer pump |
|
F03LCS/14 |
— |
Not used |
|
F03LCS/15 |
— |
Not used |
|
F03LCS/16 |
— |
Not used |
|
F03LCS/17 |
— |
Not used |
|
F03LCS/18 |
— |
Not used |
|
Relay no. |
Capacity (amps) |
Designation |
|
K03LCS/19 |
10/20 amps |
Fuel preheater relay |
|
K03LCS/20 |
1 amp |
Diode for power supply for electronics |
|
K03LCS/20 |
3 amps |
Diode for acoustic alarm |

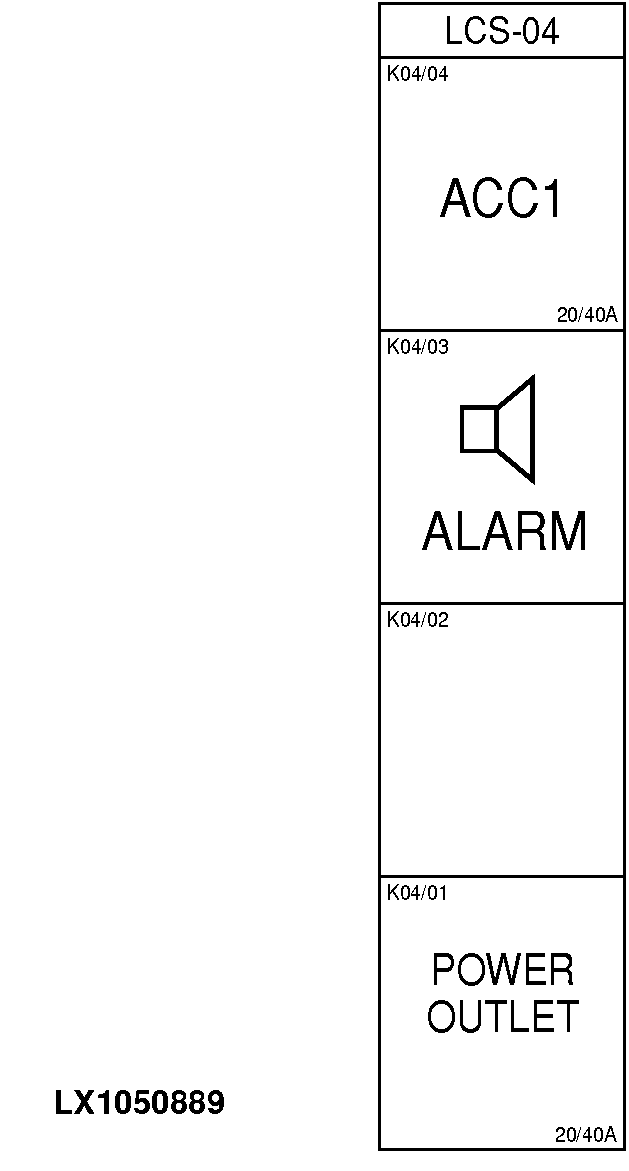

LCS-04 - Relays (LCS) with AutoPowr™/IVT™ transmission
LX1050889-UN-19OCT10
|
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|
|
K04LCS/01 |
20/40 amps |
Relay for 3-terminal socket, power outlet strip, 7-terminal socket (SAE) Relay for 3-terminal socket, power outlet strip (ECE) |
|
K04LCS/02 |
— |
Not used |
|
K04LCS/03 |
— |
Acoustic alarm |
|
K04LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC1) |

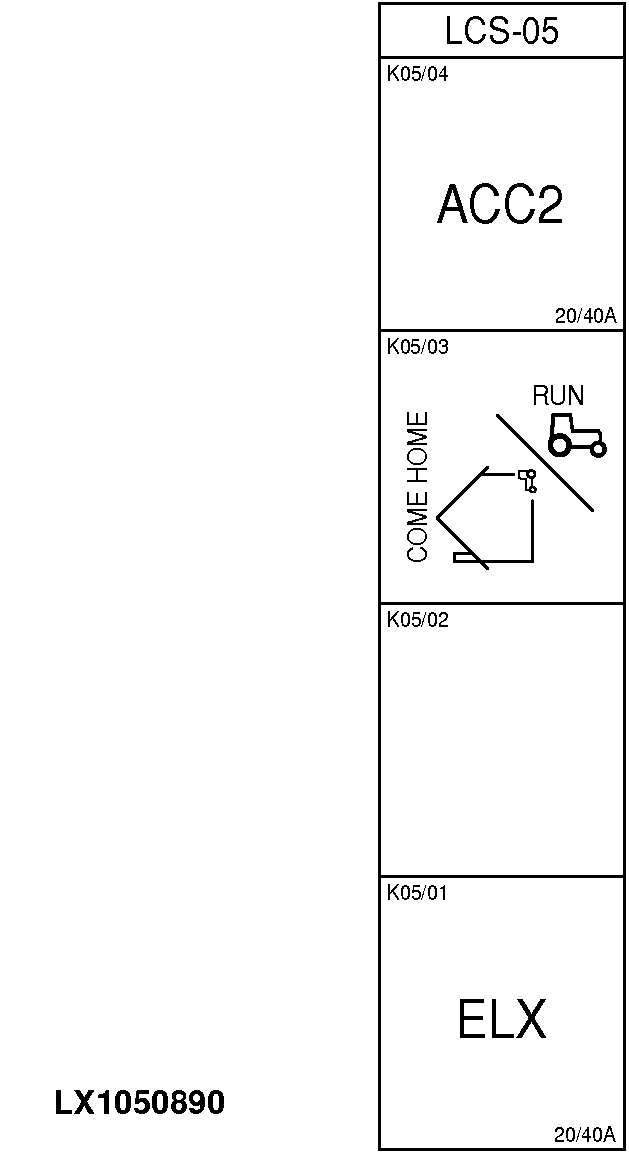

LCS-05 - Relays (LCS) with AutoPowr™/IVT™ transmission
LX1050890-UN-19OCT10
|
Relay no. |
Capacity (amps) |
Designation |
|---|---|---|
|
K05LCS/01 |
20/40 amps |
Relay for power supply to electronics (ELX) |
|
K05LCS/02 |
— |
Not used |
|
K05LCS/03 |
— |
Connector for come-home mode |
|
K05LCS/04 |
20/40 amps |
Relay for power supply to accessories (ACC2) |
|
