Change Transmission/Hydraulic Oil and Oil Filters (Tractors with PowrQuad™ PLUS or AutoQuad™ PLUS)


Change transmission/hydraulic oil filters on tractors with PowrQuad™ PLUS or AutoQuad™ PLUS

LX1053382
LX1053382-UN-10FEB12

LX1046191
LX1046191-UN-09JUN11

Hydraulic Oil Filter

LX1046193
LX1046193-UN-09JUN11

Transmission Oil Filter

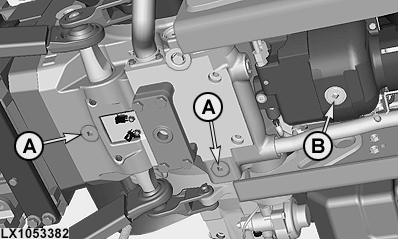

A - Drain Screw in Differential Housing

B - Drain Screw in Front-Wheel Drive Clutch

C - Hydraulic Oil Filter

D - Transmission Oil Filter

  1. Start the engine and actuate a few hydraulic functions so that the oil heats up.

  2. Park tractor so that it is level. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

  3. Shut off engine and remove ignition key.

  4. Engage park.

  5. Take out drain screws (A) and (B) and drain the oil into a suitable container. For capacities, see Specifications.

    After draining the oil, put new seal rings on drain screws (A) and (B) and tighten them.

  6. Unscrew hydraulic oil filter (C) and transmission filter (D).

  7. Coat sealing rings of new filter elements with grease and screw in filter elements.

    Use original John Deere filter elements only!

    IMPORTANT: Always replace both filters at the same time. Never change one only.


Change transmission/hydraulic oil on tractors with PowrQuad™ PLUS or AutoQuad™ PLUS

  1. LX1042828
    LX1042828-UN-26FEB07

    LX1042829
    LX1042829-UN-26FEB07

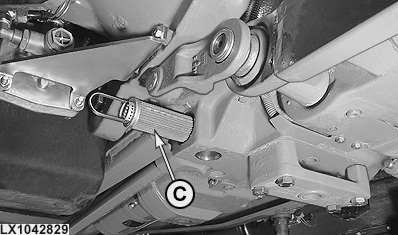

    Intake Screen on Tractors with PowrQuad™ PLUS or AutoQuad™ PLUS

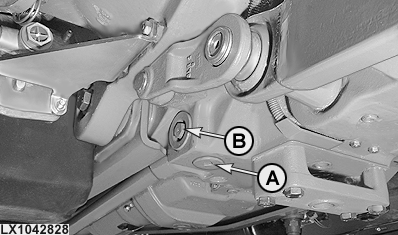

    A - Drain Plug (50 Nm; 37 lb.-ft.)

    B - Screw-Plug (50 Nm; 37 lb.-ft.)

    C - Intake Screen

    Remove screw-plug (B), pull out intake screen and wash in fuel. Clean the area where the intake screen is installed. Re-install the intake screen.


  2. Before refilling with fresh oil, replace seals and tighten drain screws to 50 Nm (37 lb.-ft.).

  3. Add transmission/hydraulic oil to the transmission case. For capacities, see Specifications.


Check the oil level

Run the engine briefly and operate several hydraulic functions. Shut off the engine.

Wait for between 10 and 15 minutes before checking the oil level. It must be between the marks on the sight-glass. If not, correct oil level.
