AutoPowr™ — Accelerator Pedal Mode

LX1053367
LX1053367-UN-25JAN12

Accelerator Pedal

LX1053368
LX1053368-UN-25JAN12

Hand Throttle

LX1053369
LX1053369-UN-25JAN12

Speed Wheel

LX1053378
LX1053378-UN-08FEB12

Indicator Light

LX1053370
LX1053370-UN-13MAR12

1 - Maximum Engine Speed

2 - Engine Load Control (Automatic Shifting, Load Control)

3 - Minimum Engine Speed (Fuel Economy)

4 - Full AUTO Modes

5 - Accelerator Pedal Mode On/Off

A - Accelerator Pedal

B - Hand Throttle

C - Speed Wheel

D - Indicator Light

Accelerator pedal mode is a function that allows the operator to control wheel speed independently of engine speed by using the accelerator pedal (A) while using hand throttle (B) to keep the engine at a constant speed.

When the accelerator pedal is released, the vehicle decelerates to a safe creep speed of 0.5 – 2 km/h. To come to a complete stop, brake pedal with auto clutch function must be used.

To cover transport applications with accelerator pedal (A) only, the operator can leave hand throttle (B) in its lowest position; engine speed is increased or decreased from the drive strategy based on fuel economy settings. When hand throttle (B) is not at its lowest position, engine speed is controlled directly by hand throttle (B) while accelerator pedal (A) controls wheel speed only.

This means that the vehicle might not reach the wheel speed commanded by speed wheel (C), if the operator is holding the engine speed at low rpm via the hand throttle.

Accelerator Pedal Mode is intended for applications where it is important to keep the engine speed at a constant rpm independent from wheel speed (mowing for example).

NOTE: When accelerator pedal mode is active, indicator light (D) comes on; when the accelerator pedal mode is de-activated, light (D) goes out.

Activate the accelerator pedal mode

Accelerator pedal mode is activated via the AutoPowr™/IVT™ transmission Settings screen on the CommandCenter™.

Before accelerator pedal mode can be activated, the reverser lever must be in park.

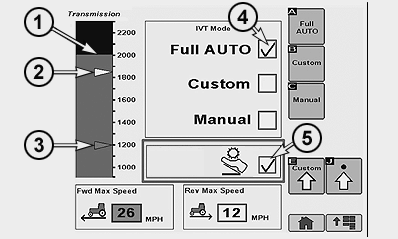

Fuel economy settings and automatic mode functions become active when accelerator pedal mode is enabled. To do this, press the transmission button and activate Auto (Full AUTO) (4) and accelerator pedal mode (5) on the page shown.

To de-activate the accelerator pedal mode, move the reverser lever to park, press the transmission button and de-activate accelerator pedal mode (5) on the page shown.
