Change the Fuel Filters

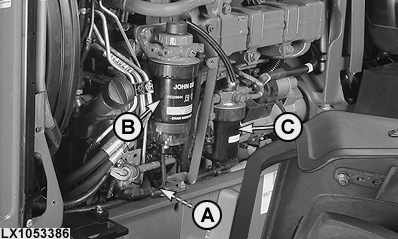

LX1053386-UN-13FEB12

A - Connector

B - Filter Housing of Primary Filter

C - Fuel Filter

Always change the two filters at the same time.

1. Disconnect connector (A) from the water sensor.

2. Unfasten filter housing (B), and remove.

3. Replace the primary filter element and re-install the filter housing.

4. Unfasten fuel filter (C), and remove.

5. Remove water trap and install it on new filter.

6. Attach new filter.

7. Reconnect connector (A).

8. Turn key switch to the right to the first switch position and run the fuel supply pump for approx. 40 seconds.
