After the First 4 and 8 Hours of Operation

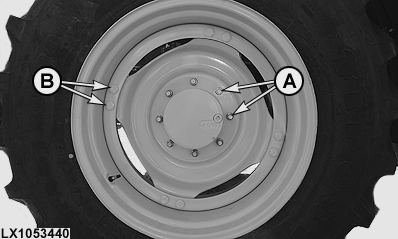

Tighten bolts/nuts of front wheels

LX1053440-UN-21MAR12

A - 300 Nm (220 lb.-ft.)

B - 210 Nm (155 lb.-ft.)

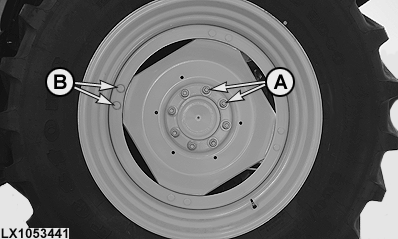

Tighten bolts/nuts of rear wheels, with flanged axles

LX1053441-UN-21MAR12

Wheel with Square Dish

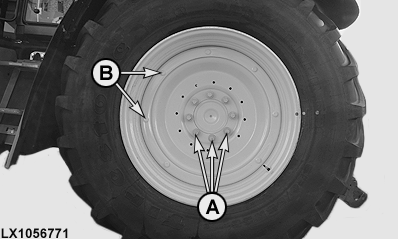

LX1056771-UN-12NOV12

Wheel with Round Dish

A - 500 Nm (370 lb.-ft.)

B - 210 Nm (155 lb.-ft.)

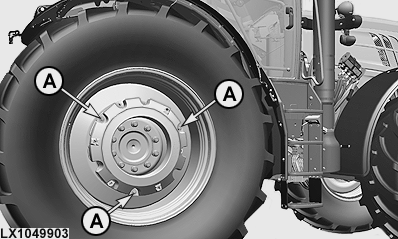

Tighten screws of wheel weights

LX1049903-UN-16FEB11

• A - Cap Screws M16, 310 N·m (230 lb.-ft.), 3 used
• A - Cap Screws M20, 610 N·m (450 lb.-ft.), 3 used
