Front-Wheel Tread Adjustment with Rims for 2 Positions

LX1053400-UN-07MAR12

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

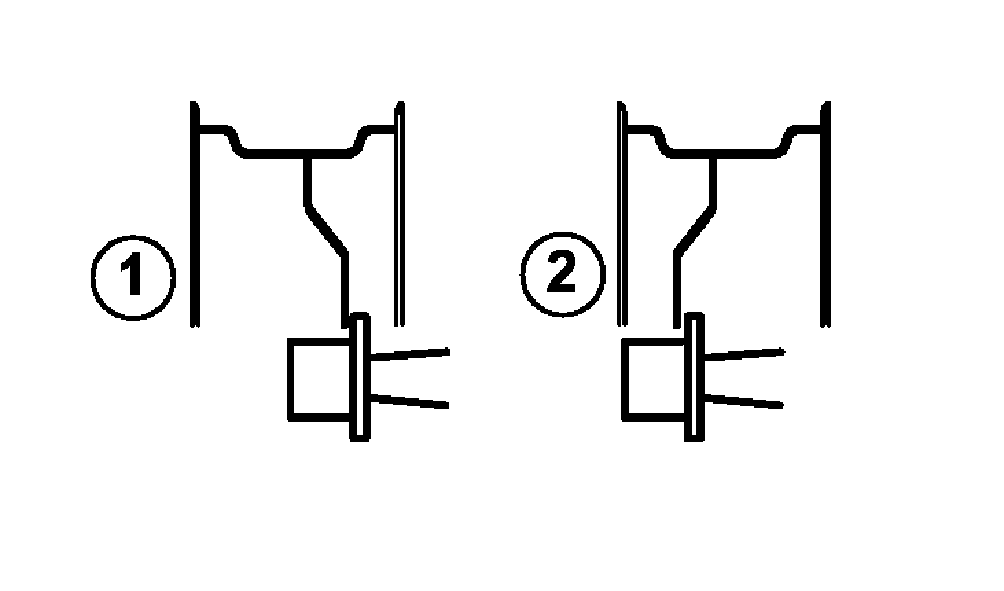

	Tread width setting on delivery	Wheel tread adjustment (front wheels) Arrangement of rim and wheel dish		Tractor
Tires:		1	2	6105R	6115R	6125R	6130R
11.2R28	1814 mm	1814 mm	1528 mm	X	X	—	—
	(71.42 in)	(71.42 in)	(60.16 in)
12.4R28	1814 mm	1814 mm	1528 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.16 in)
13.6R24	1814 mm	1814 mm	1526 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.08 in)
13.6R28	1812 mm	1812 mm	1526 mm	X	X	X	—
	(71.34 in)	(71.34 in)	(60.08 in)
13.6R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
14.9R24	1814 mm	1814 mm	1526 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.08 in)
14.9R24	1818 mm	1818 mm	1722 mm	—	—	—	X
	(71.57 in)	(71.57 in)	(67.80 in)
14.9R28	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
14.9R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
16.9R24	1812 mm	1812 mm	—**	—	—	X	—
	(71.34 in)	(71.34 in)
16.9R24	1816 mm	1816 mm	1720 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.72 in)
16.9R28	1814 mm	1814 mm	1722 mm	—	—	—	X
	(71.42 in)	(71.42 in)	(67.80 in)
280/85R28	1814 mm	1814 mm	1528 mm	X	X	—	—
	(71.42 in)	(71.42 in)	(60.16 in)
320/85R28	1814 mm	1814 mm	1528 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.16 in)
340/85R24	1814 mm	1814 mm	1526 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.08 in)
340/85R28	1812 mm	1812 mm	1526 mm	X	X	X	—
	(71.34 in)	(71.34 in)	(60.08 in)
340/85R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
380/70R24	1814 mm	1814 mm	1526 mm	X	X	—	—
	(71.42 in)	(71.42 in)	(60.08 in)
380/70R28	1812 mm	1812 mm	1526 mm	X	X	X	—
	(71.34 in)	(71.34 in)	(60.08 in)
380/70R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
380/85R24	1814 mm	1814 mm	1526 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.08 in)
380/85R24	1818 mm	1818 mm	1722 mm	—	—	—	X
	(71.57 in)	(71.57 in)	(67.80 in)
380/85R28	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
380/85R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
400/80R24 -R4	1814 mm	1814 mm	—**	X	X	X	—
	(71.42 in)	(71.42 in)
400/80R28 -R4	1812 mm	1812 mm	—**	—	—	X	—
	(71.34 in)	(71.34 in)
400/80R28 -R4	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
400/80R28 -R4	1812 mm	1812 mm	—**	X	X	—	—
	(71.34 in)	(71.34 in)
420/65R24 -R4	1814 mm	1814 mm	1526 mm	X	X	X	—
	(71.42 in)	(71.42 in)	(60.08 in)
420/70R24	1814 mm	1814 mm	—**	X	X	X	—
	(71.42 in)	(71.42 in)
420/70R24	1818 mm	1818 mm	1722 mm	—	—	—	X
	(71.57 in)	(71.57 in)	(67.80 in)
420/70R28	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
420/70R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
420/85R24	1812 mm	1812 mm	—**	—	—	X	—
	(71.34 in)	(71.34 in)
420/85R24	1816 mm	1816 mm	1720 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.72 in)
420/85R28	1814 mm	1814 mm	1722 mm	—	—	—	X
	(71.42 in)	(71.42 in)	(67.80 in)
440/65R24	1814 mm	1814 mm	—**	X	X	—	—
	(71.42 in)	(71.42 in)
440/80R24 -R4	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
440/80R24 -R4	1816 mm	1816 mm	1720 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.72 in)
440/80R28 -R4	1814 mm	1814 mm	1722 mm	—	—	—	X
	(71.42 in)	(71.42 in)	(67.80 in)
480/65R24	1814 mm	1814 mm	—**	X	X	X	—
	(71.42 in)	(71.42 in)
480/65R24	1818 mm	1818 mm	1722 mm	—	—	—	X
	(71.57 in)	(71.57 in)	(67.80 in)
480/65R28	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
480/65R28	1816 mm	1816 mm	1724 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.87 in)
480/70R24	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
480/70R24	1816 mm	1816 mm	1720 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.72 in)
480/70R28	1814 mm	1814 mm	1722 mm	—	—	—	X
	(71.42 in)	(71.42 in)	(67.80 in)
540/65R24	1812 mm	1812 mm	—**	X	X	X	—
	(71.34 in)	(71.34 in)
540/65R24	1816 mm	1816 mm	1720 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.72 in)
540/65R28	1814 mm	1814 mm	—**	—	—	—	X
	(71.42 in)	(71.42 in)
VF 520/60R28	1812 mm	1812 mm	—**	—	—	X	—
	(71.34 in)	(71.34 in)
VF 520/60R28	1816 mm	1816 mm	1726 mm	—	—	—	X
	(71.50 in)	(71.50 in)	(67.95 in)
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed
