Rear-Wheel Tread Adjustment with Rims for 2 Positions (Heavy-Duty Type) - Flanged Axle
IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 2 positions.
NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
LX1053403-UN-12MAR12
|
Tread width setting |

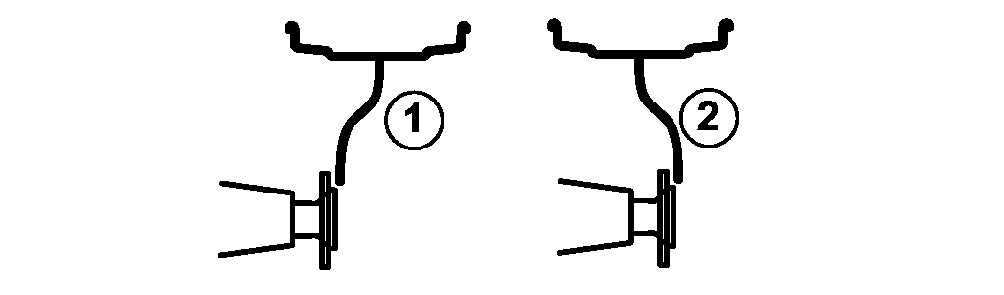

Wheel tread adjustment (rear wheels) Arrangement of rim and wheel dish |
Tractor |
|||
|---|---|---|---|---|---|
|
Tires: |
1 |
2 |
6125R |
6130R |
|
|
VF 650/60R38 |
1830 mm |
1830 mm |
—** |
X |
X |
|
(72.05 in) |
(72.05 in) |
||||
|
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed |
|||||
|
OULXA64,0002977-19-20120321 |
