Rear-Wheel Tread Adjustment with Rims for 16 Positions (Heavy-Duty Type) - Flanged Axle

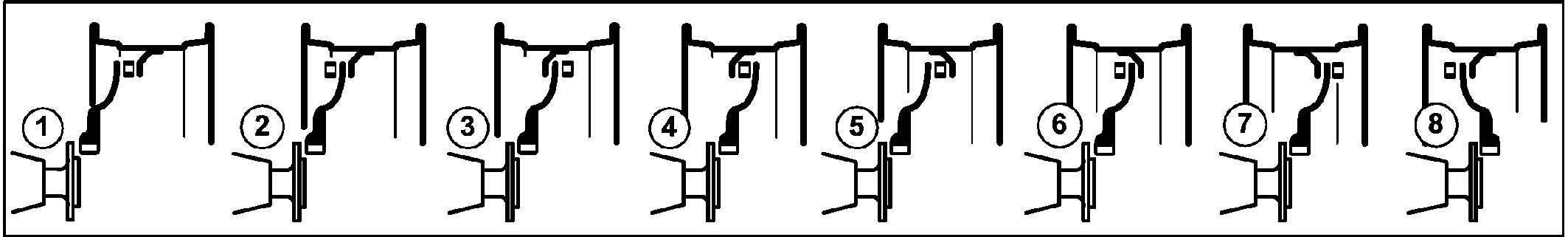

LX1053416-UN-16MAR12

Rear-Wheels - Tread Adjustment with Rims with 16 Positions (Heavy-Duty Type) / Positions 1 to 8

	Tread width setting on delivery	Wheel tread adjustment (rear wheels) Arrangement of rim and wheel dish								Tractor
Tires:		1	2	3	4	5	6	7	8	6125R	6130R
VF 650/60R38	1830 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	—**	—**	X	X
	(72.05 in)	(80.16 in)*	(78.98 in)*	(77.01 in)*	(75.83 in)*	(72.13 in)	(70.94 in)
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

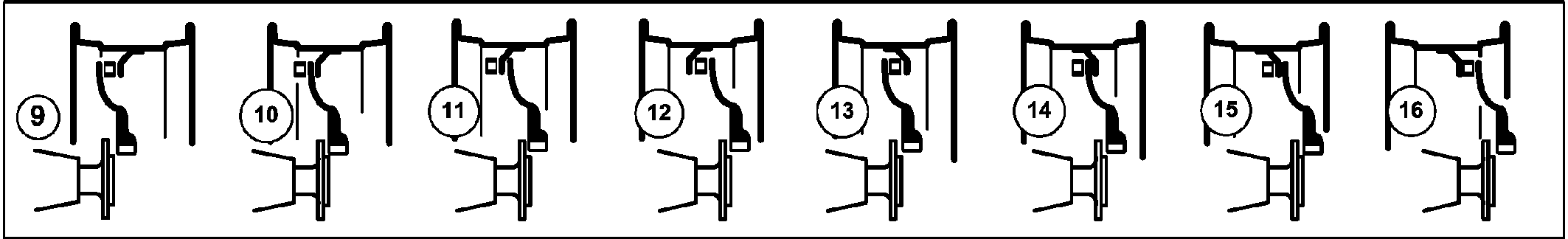

LX1053417-UN-16MAR12

Rear-Wheels - Tread Adjustment with Rims with 16 Positions (Heavy-Duty Type) / Positions 9 to 16

	Tread width setting on delivery	Wheel tread adjustment (rear wheels) Arrangement of rim and wheel dish								Tractor
Tires:		9	10	11	12	13	14	15	16	6125R	6130R
VF 650/60R38	1830 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(72.05 in)
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
