Clean the Radiator, Condenser and Area Surrounding the Engine

LX1053422-UN-29MAR12

LX1053423-UN-29MAR12

LX1053424-UN-29MAR12

A - Screens

B - Screens

C - Retaining Stud

D - Combined Cooler

E - Radiator

For the engine to operate properly, it is also essential to keep the area surrounding the engine clean. Remove accumulations of trash from the area surrounding the engine.

For efficient cooling and air-conditioning, it is also essential to keep the outside of the radiator and condenser clean.

Pull screens (A) and (B) (if equipped) to the side and remove trash.

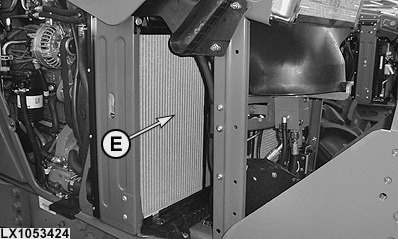

Unfasten retaining stud (C) and pull combined cooler (D) to the side. Remove trash from radiator (E) and combined cooler (D).

When re-installing the combined cooler, make sure that it is positioned centrally in relation to the radiator and engages in the guide rails properly.

Re-install and engage retaining stud (C).

Re-install screens of combined cooler and radiator.
