Additional Oil Reservoir

LX1053349-UN-22DEC11

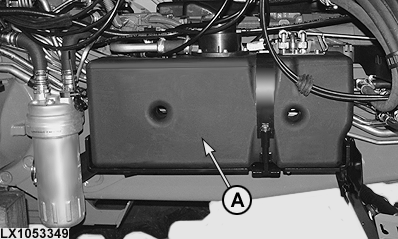

Additional oil reservoir (A) permits a maximum oil withdrawal of up to 32 liters (8.5 U.S.gal.).

The maximum amount of oil that may be withdrawn is listed in the table.

Maximum permissible oil withdrawal
6105R to 6125R	6130R
32 liters (8.45 U.S.gal.)	37 liters (9.77 U.S.gal.)

The additional oil may be used with large tipping trailers and in other applications which require a larger amount of oil.

NOTE: An additional oil reservoir brings advantages compared with overfilling of the transmission. See Oil Withdrawal in the Specifications section.
