Front Axle - Adjust Steering Stop (on 6105R to 6125R Tractors)

IMPORTANT:

LX1053443-UN-23MAY12

1. Adjust fenders (if equipped) and tread settings before setting steering stop positions.

2. Select the correct steering stop position for the tire size and tread width. See following charts.

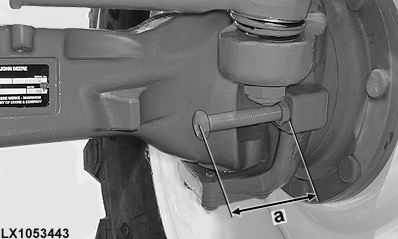

3. Measure the length of screw (a) as shown; this will bring the steering stops to their correct position.

4. Tighten steering stop retaining nuts to specifications.

   Item	Measurement	Specification
   Steering Stop Retaining Nuts	Torque	250 N·m (185 lb-ft)

5. Turn wheel fully to the right. Impact knuckle housing to steering stop five times. Repeat for left side.

6. Retighten steering stop retaining nuts to specifications.

7. Verify clearance by turning steering wheel fully to the left and then to the right.

   IMPORTANT: Settings listed are approximate, due to variations in tire size. Steering stops are adjusted properly if the tires leave 20 mm (0.79 in.) clearance with regard to the frame and side of the tractor when the axle is oscillated to its full extent.

Steering stops on 6105R to 6125R tractors

Steering stop positions — 6140R and 6150R
Tire size	Tread width		Length of screw (a)
	[mm]	[in.]	[mm]	[in.]
360/70R24	1525	60.0	39	1.6
	1617	63.7	37	1.4
	1721	67.7	28	1.1
	1813 *	71.4 *	28	1.1
	1925	75.8	28	1.1
	2017	79.4	28	1.1
320/85R24	1525	60.0	34	1.3
	1617	63.7	31	1.2
	1721 *	67.7 *	28	1.1
	1813	71.4	28	1.1
	1925	75.8	28	1.1
	2017	79.4	28	1.1
420/65R24	1617	63.7	28	1.1
	1721	67.7	28	1.1
	1813 *	71.4 *	28	1.1
	1925	75.8	28	1.1
	2017	79.4	28	1.1
440/65R24	1616	63.6	41	1.6
	1720	67.7	39	1.6
	1812 *	71.3 *	28	1.1
	1924	75.7	28	1.1
	2016	79.4	28	1.1
280/85R28	1524	60.0	34	1.3
	1616	63.6	28	1.1
	1720	67.7	28	1.1
	1812 *	71.3 *	28	1.1
	1924	75.7	28	1.1
	2016	79.4	28	1.1
340/85R24	1524	60.0	44	1.7
	1616	63.6	38	1.5
	1720	67.7	28	1.1
	1812 *	71.3 *	28	1.1
	1924	75.7	28	1.1
	2016	79.4	28	1.1
380/70R24	1524	60.0	41	1.6
	1616	63.6	28	1.1
	1720	67.7	28	1.1
	1812 *	71.3 *	28	1.1
	1924	75.7	28	1.1
	2016	79.4	28	1.1
13.6R24	1524	60.0	—	—
	1616	63.6	39	1.6
	1720	67.7	28	1.1
	1812 *	71.3 *	28	1.1
	1924	75.7	28	1.1
	2016	79.4	28	1.1
480/65R24	1615	63.6	62	2.5
	1719	67.7	39	1.6
	1811 *	71.3 *	39	1.6
	1923	75.7	28	1.1
	2015	79.3	28	1.1
420/70R24	1615	63.6	41	1.6
	1719	67.7	38	1.5
	1811 *	71.3 *	28	1.1
	1923	75.7	28	1.1
	2015	79.3	28	1.1
400/80R24	1523	60.0	72	2.8
	1615	63.6	48	1.9
	1719	67.7	47	1.8
	1811 *	71.3 *	28	1.1
	1923	75.7	28	1.1
	2015	79.3	28	1.1
320/85R28	1523	60.0	51	2.0
	1615	63.6	44	1.7
	1719	67.7	28	1.1
	1811 *	71.3 *	28	1.1
	1923	75.7	28	1.1
	2015	79.3	28	1.1
380/85R24	1523	60.0	66	2.6
	1615	63.6	—	—
	1719	67.7	—	—
	1811 *	71.3 *	—	—
	1923	75.7	—	—
	2015	79.3	—	—
340/85R28	1614	63.6	53	2.1
	1718	67.6	33	1.3
	1810 *	71.3 *	28	1.1
	1922	75.7	28	1.1
	2014	79.3	28	1.1
380/70R28	1614	63.6	43	1.7
	1718	67.6	30	1.2
	1810 *	71.3 *	28	1.1
	1922	75.7	28	1.1
	2014	79.3	28	1.1
540/65R24	1718	67.6	64	2.5
	1810 *	71.3 *	45	1.8
	1922	75.7	37	1.4
	2014	79.3	29	1.1
440/80R24	1614	63.6	32	1.2
	1718	67.6	32	1.2
	1810 *	71.3 *	32	1.2
	1922	75.7	32	1.2
	2014	79.3	32	1.2
480/70R24	1718	67.6	47	1.8
	1810 *	71.3 *	41	1.6
	1922	75.7	28	1.1
	2014	79.3	28	1.1
420/85R24	1718	67.6	51	2.0
	1810 *	71.3 *	34	1.3
	1922	75.7	28	1.1
	2014	79.3	28	1.1
VF 520/60R28	1811	71.3	45	1.8
480/65R28	1717	67.6	55	2.2
	1809 *	71.2 *	50	2.0
	1921	75.6	28	1.1
	2013	79.3	28	1.1
420/70R28	1613	63.5	61	2.4
	1717	67.6	41	1.6
	1809 *	71.2 *	31	1.2
	1921	75.6	28	1.1
	2013	79.3	28	1.1
400/80R28	1521	59.9	--	--
	1613	63.5	65	2.6
	1717	67.6	46	1.8
	1809 *	71.2 *	35	1.4
	1921	75.6	28	1.1
	2013	79.3	28	1.1
380/85R28	1521	59.9	81	3.2
	1613	63.5	61	2.4
	1717	67.6	44	1.7
	1809 *	71.2 *	36	1.4
	1921	75.6	28	1.1
	2013	79.3	28	1.1
* Tread width setting on delivery. This is the only tread width that permits front-loader operation.
