Etupyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä (traktorit 6105R, 6115R ja 6125R)

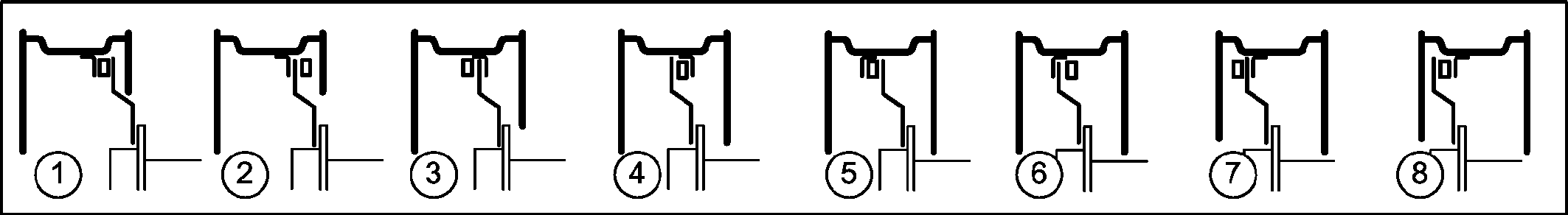

LX1053419-UN-16MAR12

Etupyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä / asennot 1 - 8

	Raidevälin säätö toimitushetkellä	Eturaidevälin säätö (etupyörät) Vanteen ja pyörän keskiön asennot								Traktori
Renkaat:		1	2	3	4	5	6	7	8	6105R ja 6115R	6125R
11.2R24	1722 mm	2018 mm	1988 mm	1956 mm	1926 mm	1814 mm	1784 mm	1752 mm	1722 mm	X	X
	(67.80 in)	(79.45 in)	(78.27 in)	(77.01 in)	(75.83 in)	(71.42 in)	(70.24 in)	(68.98 in)	(67.80 in)
11.2R28	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	—
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
12.4R24	1720 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(67.72 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
12.4R28	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	—	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
13.6-38 -R2	1616 mm	2014 mm	1984 mm	1946 mm	1916 mm	1810 mm	1780 mm	1742 mm	1712 mm	X	X
	(63.62 in)	(79.29 in)	(78.11 in)	(76.61 in)	(75.43 in)	(71.26 in)	(70.08 in)	(68.58 in)	(67.40 in)
13.6R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
13.6R28	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
13.6R38	1618 mm	2016 mm	1986 mm	1948 mm	1918 mm	1812 mm	1782 mm	1744 mm	1714 mm	—	X
	(63.70 in)	(79.37 in)	(78.19 in)	(76.69 in)	(75.51 in)	(71.34 in)	(70.16 in)	(68.66 in)	(67.48 in)
14.9R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
16.9R24	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	—	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
280/85R24	1722 mm	2018 mm	1988 mm	1956 mm	1926 mm	1814 mm	1784 mm	1752 mm	1722 mm	X	X
	(67.80 in)	(79.45 in)	(78.27 in)	(77.01 in)	(75.83 in)	(71.42 in)	(70.24 in)	(68.98 in)	(67.80 in)
280/85R28	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	—
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
320/85R24	1720 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(67.72 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
320/85R28	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
340/85R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
340/85R28	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
340/85R38	1618 mm	2016 mm	1986 mm	1948 mm	1918 mm	1812 mm	1782 mm	1744 mm	1714 mm	—	X
	(63.70 in)	(79.37 in)	(78.19 in)	(76.69 in)	(75.51 in)	(71.34 in)	(70.16 in)	(68.66 in)	(67.48 in)
380/70R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	--
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
380/70R28	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
380/85R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
380/85R28	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
400/80R24 -R4	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
400/80R28 -R4	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
420/65R24 -R4	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
420/70R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
420/70R28	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
420/85R24	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	—	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
440/65R24	1814 mm	2016 mm	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	--
	(71.42 in)	(79.37 in)	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
440/80R24 -R4	1812 mm	2014 mm	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
480/65R24	1814 mm	2016 mm*	1986 mm	1954 mm	1924 mm	1812 mm	1782 mm	1750 mm	1720 mm	X	X
	(71.42 in)	(79.37 in)*	(78.19 in)	(76.93 in)	(75.75 in)	(71.34 in)	(70.16 in)	(68.90 in)	(67.72 in)
480/65R28	1812 mm	2014 mm*	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
480/70R24	1812 mm	2014 mm*	1984 mm	1952 mm	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)*	(78.11 in)	(76.85 in)	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
540/65R24	1812 mm	2014 mm*	1984 mm*	1952 mm*	1922 mm	1810 mm	1780 mm	1748 mm	1718 mm	X	X
	(71.34 in)	(79.29 in)	(78.11 in)	(76.85 in)*	(75.67 in)	(71.26 in)	(70.08 in)	(68.82 in)	(67.64 in)
13.6-38 -R2	1812 mm	2016 mm	1986 mm	1946 mm	1916 mm	1812 mm	1782 mm	1742 mm	1712 mm	X	X
	(71.34 in)	(79.37 in)	(78.19 in)	(76.61 in)	(75.43 in)	(71.34 in)	(70.16 in)	(68.58 in)	(67.40 in)
13.6R38	1814 mm	2018 mm	1988 mm	1948 mm	1918 mm	1814 mm	1784 mm	1744 mm	1714 mm	—	X
	(71.42 in)	(79.45 in)	(78.27 in)	(76.69 in)	(75.51 in)	(71.42 in)	(70.24 in)	(68.66 in)	(67.48 in)
270/80R36	1818 mm	2022 mm	1992 mm	1952 mm	1922 mm	1818 mm	1788 mm	1748 mm	1718 mm	X	X
	(71.57 in)	(79.61 in)	(78.42 in)	(76.85 in)	(75.67 in)	(71.57 in)	(70.39 in)	(68.82 in)	(67.64 in)
270/95R32	1818 mm	2022 mm	1992 mm	1952 mm	1922 mm	1818 mm	1788 mm	1748 mm	1718 mm	X	X
	(71.57 in)	(79.61 in)	(78.42 in)	(76.85 in)	(75.67 in)	(71.57 in)	(70.39 in)	(68.82 in)	(67.64 in)
340/85R38	1814 mm	2018 mm	1988 mm	1948 mm	1918 mm	1814 mm	1784 mm	1744 mm	1714 mm	—	X
	(71.42 in)	(79.45 in)	(78.27 in)	(76.69 in)	(75.51 in)	(71.42 in)	(70.24 in)	(68.66 in)	(67.48 in)
380/85R30	1810 mm	2014 mm	1984 mm	1950 mm	1920 mm	1810 mm	1780 mm	1746 mm	1716 mm	X	X
	(71.26 in)	(79.29 in)	(78.11 in)	(76.77 in)	(75.59 in)	(71.26 in)	(70.08 in)	(68.74 in)	(67.56 in)
* E I yleisellä tiellä. Noudata paikallista tieliikennelainsäädäntöä. * Asennus tähän asentoon on kielletty.

TÄRKEÄÄ: Noudata ohjeita, jotka koskevat 16-asentoisilla vanteilla varustettujen etupyörien raidevälin säätämistä.

HUOMAA: Eräissä maissa ajoneuvon kokonaisleveys saa olla korkeintaan 2,55 m (100 in.) ajettaessa yleisillä teillä.

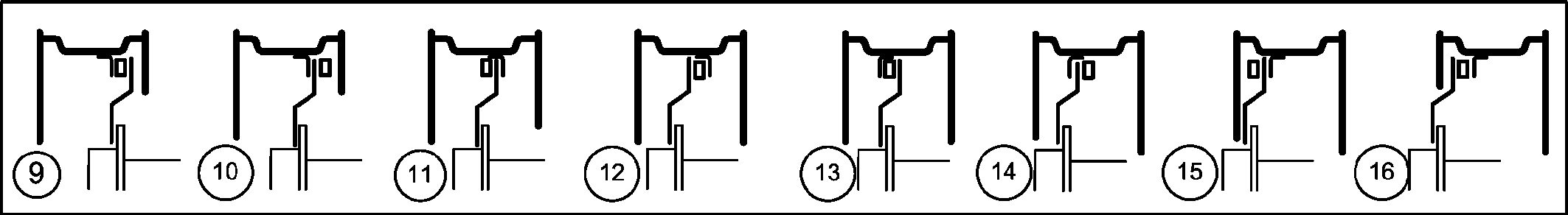

LX1053420-UN-16MAR12

Etupyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä / asennot 9 - 16

	Raidevälin säätö toimitushetkellä	Eturaidevälin säätö (etupyörät) Vanteen ja pyörän keskiön asennot								Traktori
Renkaat:		9	10	11	12	13	14	15	16	6105R ja 6115R	6125R
11.2R24	1722 mm	1618 mm	1588 mm	1556 mm	1526 mm	1414 mm	1384 mm	1352 mm	—**	X	X
	(67.80 in)	(63.70 in)	(62.52 in)	(61.26 in)	(60.08 in)	(55.67 in)	(54.49 in)	(53.23 in)
11.2R28	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	1412 mm	1382 mm	—**	—**	X	--
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)	(55.59 in)	(54.41 in)
12.4R24	1720 mm	1616 mm	1586 mm	1554 mm	1524 mm	1412 mm	—**	—**	—**	X	X
	(67.72 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)	(55.59 in)
12.4R28	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	—	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
13.6-38 -R2	1616 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(63.62 in)
13.6R24	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
13.6R28	1812 mm	1614 mm	1584 mm	1552 mm	1522 mm	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)	(62.36 in)	(61.10 in)	(59.92 in)
13.6R38	1618 mm	—**	—**	—**	—**	—**	—**	—**	—**	--	X
	(63.70 in)
14.9R24	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
16.9R24	1812 mm	1614 mm	**	**	**	—**	—**	—**	—**	—	X
	(71.34 in)	(63.54 in)
280/85R24	1722 mm	1618 mm	1588 mm	1556 mm	1526 mm	1414 mm	1384 mm	1352 mm	1322 mm	X	X
	(67.80 in)	(63.70 in)	(62.52 in)	(61.26 in)	(60.08 in)	(55.67 in)	(54.49 in)	(53.23 in)	(52.05 in)
280/85R28	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	1412 mm	1382 mm	—**	—**	X	—
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)	(55.59 in)	(54.41 in)
320/85R24	1720 mm	1616 mm	1586 mm	1554 mm	1524 mm	1412 mm	—**	—**	—**	X	X
	(67.72 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)	(55.59 in)
320/85R28	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
340/85R24	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
340/85R28	1812 mm	1614 mm	1584 mm	1552 mm	1522 mm	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)	(62.36 in)	(61.10 in)	(59.92 in)
340/85R38	1618 mm	1616 mm	—**	—**	—**	—**	—**	—**	—**	—	X
	(63.70 in)	(63.62 in)
380/70R24	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	--
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
380/70R28	1812 mm	1614 mm	1584 mm	1552 mm	1522 mm	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)	(62.36 in)	(61.10 in)	(59.92 in)
380/85R24	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
380/85R28	1812 mm	1614 mm	1584 mm	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)	(62.36 in)
400/80R24 -R4	1814 mm	1616 mm	1586 mm	1554 mm	—**	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)
400/80R28 -R4	1812 mm	1614 mm	1584 mm	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)	(62.36 in)
420/65R24 -R4	1814 mm	1616 mm	1586 mm	1554 mm	1524 mm	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)	(60.00 in)
420/70R24	1814 mm	1616 mm	1586 mm	1554 mm	—**	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)
420/70R28	1812 mm	1614 mm	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)
420/85R24	1812 mm	1614 mm	1584 mm	—**	—**	—**	—**	—**	—**	—	X
	(71.34 in)	(63.54 in)	(62.36 in)
440/65R24	1814 mm	1616 mm	1586 mm	1554 mm	—**	—**	—**	—**	—**	X	--
	(71.42 in)	(63.62 in)	(62.44 in)	(61.18 in)
440/80R24 -R4	1812 mm	1614 mm	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)	(63.54 in)
480/65R24	1814 mm	1616 mm	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.42 in)	(63.62 in)
480/65R28	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
480/70R24	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
540/65R24	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
13.6-38 -R2	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
13.6R38	1814 mm	—**	—**	—**	—**	—**	—**	—**	—**	—	X
	(71.42 in)
270/80R36	1818 mm	1622 mm	1592 mm	1552 mm	1522 mm	1418 mm	—**	—**	—**	X	X
	(71.57 in)	(63.86 in)	(62.68 in)	(61.10 in)	(59.92 in)	(55.83 in)
270/95R32	1818 mm	1622 mm	1592 mm	1552 mm	1522 mm	—**	—**	—**	—**	X	X
	(71.57 in)	(63.86 in)	(62.68 in)	(61.10 in)	(59.92 in)
340/85R38	1814 mm	1618 mm	—**	—**	—**	—**	—**	—**	—**	-	X
	(71.42 in)	(63.70 in)
380/85R30	1810 mm	1614 mm	1584 mm	—**	—**	—**	—**	—**	—**	X	X
	(71.26 in)	(63.54 in)	(62.36 in)
* E I yleisellä tiellä. Noudata paikallista tieliikennelainsäädäntöä. * Asennus tähän asentoon on kielletty.

TÄRKEÄÄ: Noudata ohjeita, jotka koskevat 16-asentoisilla vanteilla varustettujen etupyörien raidevälin säätämistä.

HUOMAA: Eräissä maissa ajoneuvon kokonaisleveys saa olla korkeintaan 2,55 m (100 in.) ajettaessa yleisillä teillä.
