Takapyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä - Laippa-akseli (traktorit 6105R, 6115R ja 6125R)

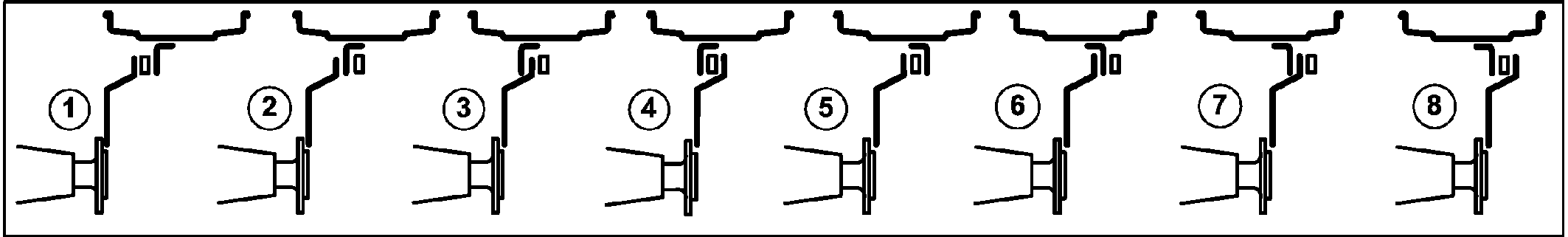

LX1053414-UN-16MAR12

Takapyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä / asennot 1 - 8

	Raidevälin säätö toimitushetkellä	Raidevälin säätö (takapyörät) Vanteen ja pyörän keskiön asennot								Traktori
Renkaat:		1	2	3	4	5	6	7	8	6105R ja 6115R	6125R
13.6-46 -R2	1613 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(63.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
13.6-46 -R2	1628 mm	2026 mm	1996 mm	1958 mm	1928 mm	1822 mm	1792 mm	1754 mm	1724 mm	—	X
	(64.09 in)	(79.76 in)	(78.58 in)	(77.09 in)	(75.91 in)	(71.73 in)	(70.55 in)	(69.05 in)	(67.87 in)
13.6R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
16.9R24	1816 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
16.9R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	—
	(67.32 in)	(75.20 in)	(74.02 in)	(72.68 in)	(71.50 in)	(67.17 in)	(65.98 in)	(64.65 in)	(63.46 in)
16.9R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
16.9R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
16.9R38	1824 mm	2030 mm	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)	(78.74 in)	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
18.4R26	1612 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(63.46 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
18.4R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	—
	(67.32 in)	(75.20 in)	(74.02 in)	(72.68 in)	(71.50 in)	(67.17 in)	(65.98 in)	(64.65 in)	(63.46 in)
18.4R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
18.4R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
18.4R38	1824 mm	2030 mm	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)	(78.74 in)	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
340/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
340/85R46	1613 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(63.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
380/80R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
380/90R46	1613 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(63.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
380/90R46	1628 mm	2026 mm	1996 mm	1958 mm	1928 mm	1822 mm	1792 mm	1754 mm	1724 mm	—	X
	(64.09 in)	(79.76 in)	(78.58 in)	(77.09 in)	(75.91 in)	(71.73 in)	(70.55 in)	(69.05 in)	(67.87 in)
420/85R24	1816 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
420/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	—
	(67.32 in)	(75.20 in)	(74.02 in)	(72.68 in)	(71.50 in)	(67.17 in)	(65.98 in)	(64.65 in)	(63.46 in)
420/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
420/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
460/85R26	1612 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(63.46 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
460/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	—
	(67.32 in)	(75.20 in)	(74.02 in)	(72.68 in)	(71.50 in)	(67.17 in)	(65.98 in)	(64.65 in)	(63.46 in)
460/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
460/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
480/70R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
480/70R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
480/70R38	1824 mm	2030 mm	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)	(78.74 in)	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
480/80R30 -R4	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	—
	(67.32 in)	(75.20 in)	(74.02 in)	(72.68 in)	(71.50 in)	(67.17 in)	(65.98 in)	(64.65 in)	(63.46 in)
480/80R34 -R4	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	—
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)	(64.65 in)	(63.46 in)
480/80R38 -R4	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)	(63.46 in)
480/80R38 -R4	1824 mm	2030 mm	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)	(78.74 in)	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
520/70R34	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	—**	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)
520/70R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	—**	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)	(64.65 in)
520/70R38	1824 mm	2030 mm*	2000 mm	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)*	(78.74 in)	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
540/65R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	—**	—**	X	—
	(71.34 in)	(75.28 in)	(74.09 in)	(72.68 in)	(71.50 in)	(67.24 in)	(66.06 in)
540/65R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	—**	—**	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)	(66.22 in)
540/65R38	1824 mm	2030 mm*	2000 mm*	1956 mm	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)*	(78.74 in)*	(77.01 in)	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
600/65R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	—**	—**	—**	X	—
	(71.50 in)	(75.43 in)	(74.25 in)	(72.68 in)	(71.50 in)	(67.40 in)
600/65R38	1824 mm	2030 mm*	2000 mm*	1956 mm*	1926 mm	1826 mm	1796 mm	1752 mm	1722 mm	—	X
	(71.81 in)	(79.92 in)*	(78.74 in)*	(77.01 in)*	(75.83 in)	(71.89 in)	(70.71 in)	(68.98 in)	(67.80 in)
VF 650/60R38	1830 mm	2036 mm*	2006 mm*	1956 mm*	1926 mm*	1832 mm	1802 mm	—**	—**	—	X
	(72.05 in)	(80.16 in)*	(78.98 in)*	(77.01 in)*	(75.83 in)*	(72.13 in)	(70.94 in)
13.6-46 -R2	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
13.6-46 -R2	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm	—	X
	(71.89 in)	(79.92 in)	(78.74 in)	(77.09 in)	(75.91 in)	(71.89 in)	(70.71 in)	(69.05 in)	(67.87 in)
270/95R48	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
270/95R48	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm	—	X
	(71.89 in)	(79.92 in)	(78.74 in)	(77.09 in)	(75.91 in)	(71.89 in)	(70.71 in)	(69.05 in)	(67.87 in)
300/95R46	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
300/95R46	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm	—	X
	(71.89 in)	(79.92 in)	(78.74 in)	(77.09 in)	(75.91 in)	(71.89 in)	(70.71 in)	(69.05 in)	(67.87 in)
340/85R46	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
340/85R48	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
340/85R48	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm	—	X
	(71.89 in)	(79.92 in)	(78.74 in)	(77.09 in)	(75.91 in)	(71.89 in)	(70.71 in)	(69.05 in)	(67.87 in)
380/90R46	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	—
	(71.50 in)	(75.51 in)	(74.33 in)	(72.68 in)	(71.50 in)	(67.48 in)	(66.30 in)	(64.65 in)	(63.46 in)
380/90R46	1826 mm	2030 mm	2000 mm	1958 mm	1928 mm	1826 mm	1796 mm	1754 mm	1724 mm	—	X
	(71.89 in)	(79.92 in)	(78.74 in)	(77.09 in)	(75.91 in)	(71.89 in)	(70.71 in)	(69.05 in)	(67.87 in)
* E I yleisellä tiellä. Noudata paikallista tieliikennelainsäädäntöä. * Asennus tähän asentoon on kielletty.

TÄRKEÄÄ: Noudata ohjeita, jotka koskevat 16-asentoisilla vanteilla varustettujen takapyörien raidevälin säätämistä.

HUOMAA: Eräissä maissa ajoneuvon kokonaisleveys saa olla korkeintaan 2,55 m (100 in.) ajettaessa yleisillä teillä.

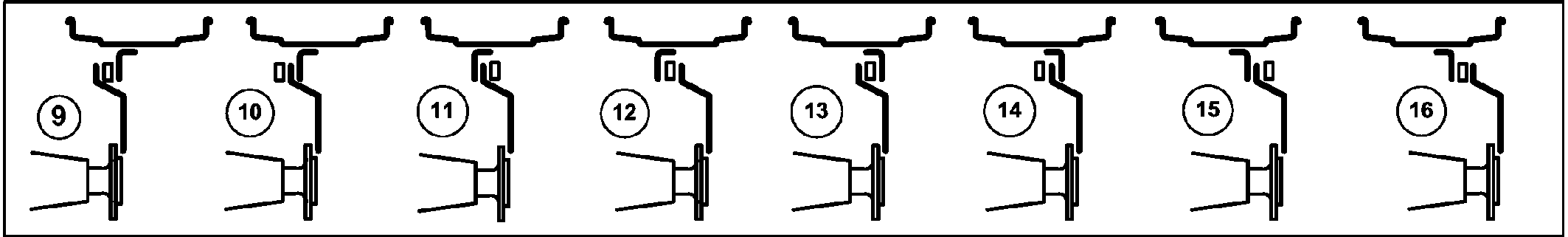

LX1053415-UN-16MAR12

Takapyörien raidevälin säätäminen 16-asentoisten vanteiden yhteydessä / asennot 9 - 16

	Raidevälin säätö toimitushetkellä	Raidevälin säätö (takapyörät) Vanteen ja pyörän keskiön asennot								Traktori
Renkaat:		9	10	11	12	13	14	15	16	6105R ja 6115R	6125R
13.6-46 -R2	1613 mm	1516 mm	1486 mm	—**	—**	—**	—**	—**	—**	X	—
	(63.50 in)	(59.68 in)	(58.50 in)
13.6-46 -R2	1628 mm	1626 mm	1596 mm	1558 mm	1528 mm	—**	—**	—**	—**	—	X
	(64.09 in)	(64.02 in)	(62.83 in)	(61.34 in)	(60.16 in)
13.6R38	1816 mm	1516 mm	1486 mm	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.68 in)	(58.50 in)
16.9R24	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
16.9R30	1710 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(67.32 in)
16.9R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.34 in)
16.9R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
16.9R38	1824 mm	1630 mm	1600 mm	1556 mm	—**	—**	—**	—**	—**	—	X
	(71.81 in)	(64.17 in)	(62.99 in)	(61.26 in)
18.4R26	1612 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(63.46 in)
18.4R30	1710 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(67.32 in)
18.4R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
18.4R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
18.4R38	1824 mm	1630 mm	1600 mm	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)	(64.17 in)	(62.99 in)
340/85R38	1816 mm	1516 mm	1486 mm	1446 mm	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.68 in)	(58.50 in)	(56.93 in)
340/85R46	1613 mm	1516 mm	1486 mm	1446 mm	—**	—**	—**	—**	—**	X	—
	(63.50 in)	(59.68 in)	(58.50 in)	(56.93 in)
380/80R38	1816 mm	1516 mm	1486 mm	—**	—**	—**	—**	—**	—**	X	X
	(71.50 in)	(59.68 in)	(58.50 in)
380/90R46	1613 mm	1516 mm	—**	—**	—**	—**	—**	—**	—**	X	—
	(63.50 in)	(59.68 in)
380/90R46	1628 mm	1626 mm	1596 mm	1558 mm	1528 mm	—**	—**	—**	—**	—	X
	(64.09 in)	(64.02 in)	(62.83 in)	(61.34 in)	(60.16 in)
420/85R24	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
420/85R30	1710 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(67.32 in)
420/85R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.34 in)
420/85R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
460/85R26	1612 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(63.46 in)
460/85R30	1710 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(67.32 in)
460/85R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	X
	(71.34 in)
460/85R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
480/70R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.34 in)
480/70R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
480/70R38	1824 mm	1630 mm	1600 mm	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)	(64.17 in)	(62.99 in)
480/80R30 -R4	1710 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(67.32 in)
480/80R34 -R4	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.34 in)
480/80R38 -R4	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
480/80R38 -R4	1824 mm	1630 mm	1600 mm	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)	(64.17 in)	(62.99 in)
520/70R34	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
520/70R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
520/70R38	1824 mm	1630 mm	—**	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)	(64.17 in)
540/65R34	1812 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.34 in)
540/65R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
540/65R38	1824 mm	—**	—**	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)
600/65R38	1816 mm	—**	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)
600/65R38	1824 mm	—**	—**	—**	—**	—**	—**	—**	—**	—	X
	(71.81 in)
VF 650/60R38	1830 mm	—**	—**	—**	—**	—**	—**	—**	—**	—	X
	(72.05 in)
13.6-46 -R2	1816 mm	1518 mm	1488 mm	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)	(58.58 in)
13.6-46 -R2	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	—**	—**	—**	—**	—	X
	(71.89 in)	(64.17 in)	(62.99 in)	(61.34 in)	(60.16 in)
270/95R48	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)	(58.58 in)	(56.93 in)	(55.75 in)
270/95R48	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	1426 mm	1396 mm	—**	—**	—	X
	(71.89 in)	(64.17 in)	(62.99 in)	(61.34 in)	(60.16 in)	(56.14 in)	(54.96 in)
300/95R46	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)	(58.58 in)	(56.93 in)	(55.75 in)
300/95R46	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	1426 mm	1396 mm	—**	—**	—	X
	(71.89 in)	(64.17 in)	(62.99 in)	(61.34 in)	(60.16 in)	(56.14 in)	(54.96 in)
340/85R46	1816 mm	1518 mm	1488 mm	1446 mm	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)	(58.58 in)	(56.93 in)
340/85R48	1816 mm	1518 mm	1488 mm	1446 mm	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)	(58.58 in)	(56.93 in)
340/85R48	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	—**	—**	—**	—**	—	X
	(71.89 in)	(64.17 in)	(62.99 in)	(61.34 in)	(60.16 in)
380/90R46	1816 mm	1518 mm	—**	—**	—**	—**	—**	—**	—**	X	—
	(71.50 in)	(59.76 in)
380/90R46	1826 mm	1630 mm	1600 mm	1558 mm	1528 mm	—**	—**	—**	—**	—	X
	(71.89 in)	(64.17 in)	(62.99 in)	(61.34 in)	(60.16 in)
* E I yleisellä tiellä. Noudata paikallista tieliikennelainsäädäntöä. * Asennus tähän asentoon on kielletty.

TÄRKEÄÄ: Noudata ohjeita, jotka koskevat 16-asentoisilla vanteilla varustettujen takapyörien raidevälin säätämistä.

HUOMAA: Eräissä maissa ajoneuvon kokonaisleveys saa olla korkeintaan 2,55 m (100 in.) ajettaessa yleisillä teillä.
