Check Transmission/Hydraulic System Oil Level

LX1053374
LX1053374-UN-28FEB12

Without additional oil reservoir

LX1053375
LX1053375-UN-28FEB12

With additional oil reservoir

LX1053387
LX1053387-UN-28FEB12

A - Max. Mark

B - Min. Mark

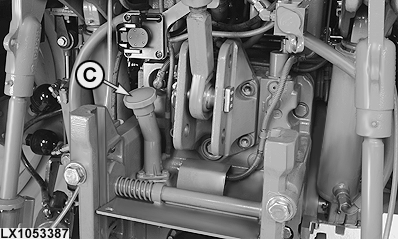

C - Filler Neck

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

  1. Park tractor so that it is level.

  2. Engage park.

  3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

  4. Oil level should be between marks (A) and (B) on the sight-glass. If it is not, add more oil at filler neck (C).
