Regulacja rozstawu kół tylnych z obręczami 16-położeniowymi - oś kołnierzowa (ciągniki 6105M do 6125M)

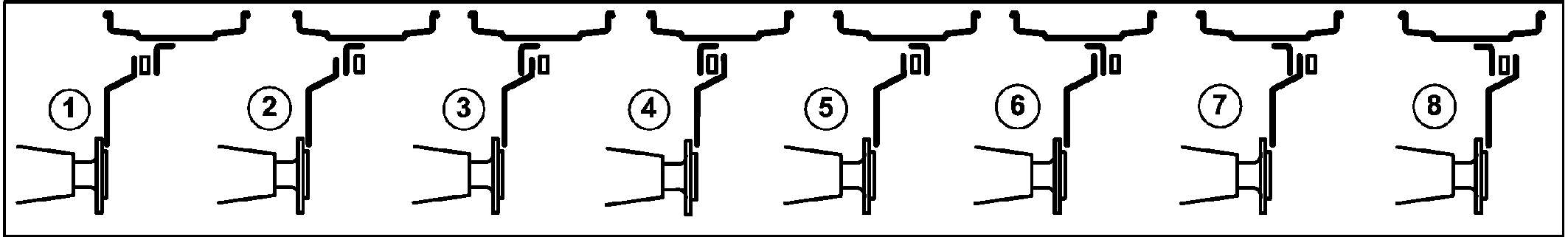

LX1053414-UN-16MAR12

Regulacja rozstawu kół tylnych z obręczami 16-położeniowymi / położenia od 1 do 8

	Ustawienie rozstawu kół przy dostawie	Ustawienie rozstawu kół (tylnych) Układ obręczy i tarcz kół								Ciągnik
Opony:		1	2	3	4	5	6	7	8	6105M	6115M 6125M
13.6-46 -R2	1613 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	—	X
	(63.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
13.6R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
16.9R24	1816 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
16.9R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	X
	(67.32 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)	(67.17 in.)	(65.98 in.)	(64.65 in.)	(63.46 in.)
16.9R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
16.9R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
18.4R26	1612 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(63.46 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
18.4R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	X
	(67.32 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)	(67.17 in.)	(65.98 in.)	(64.65 in.)	(63.46 in.)
18.4R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
18.4R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
340/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
380/80R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
420/85R24	1816 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
420/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	X
	(67.32 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)	(67.17 in.)	(65.98 in.)	(64.65 in.)	(63.46 in.)
420/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
420/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
460/85R26	1612 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(63.46 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
460/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm	X	X
	(67.32 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)	(67.17 in.)	(65.98 in.)	(64.65 in.)	(63.46 in.)
460/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
460/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
480/70R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)	(64.65 in.)	(63.46 in.)
480/70R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)	(63.46 in.)
520/70R34	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	— **	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)
520/70R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	— **	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)	(64.65 in.)
540/65R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	— **	— **	X	X
	(71.34 in.)	(75.28 in.)	(74.09 in.)	(72.68 in.)	(71.50 in.)	(67.24 in.)	(66.06 in.)
540/65R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	— **	— **	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)
600/65R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	— **	— **	X	X
	(71.50 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)	(67.40 in.)	(66.22 in.)
270/95R48	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.51 in.)	(74.33 in.)	(72.68 in.)	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.65 in.)	(63.46 in.)
300/95R46	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.51 in.)	(74.33 in.)	(72.68 in.)	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.65 in.)	(63.46 in.)
340/85R48	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm	X	X
	(71.50 in.)	(75.51 in.)	(74.33 in.)	(72.68 in.)	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.65 in.)	(63.46 in.)
* Całkowita szerokość pojazdu powyżej 2,55 m (100 in.); trzeba przestrzegać lokalnych przepisów ruchu drogowego. ** Montaż w tym położeniu jest niedozwolony

WAŻNE: Stosować się do instrukcji regulacji rozstawu kół tylnych z obręczami 16-położeniowymi.

WSKAZÓWKA: W niektórych krajach całkowita szerokość pojazdu nie może przekraczać 2,55 m (100 in.) podczas jazdy po drogach publicznych.

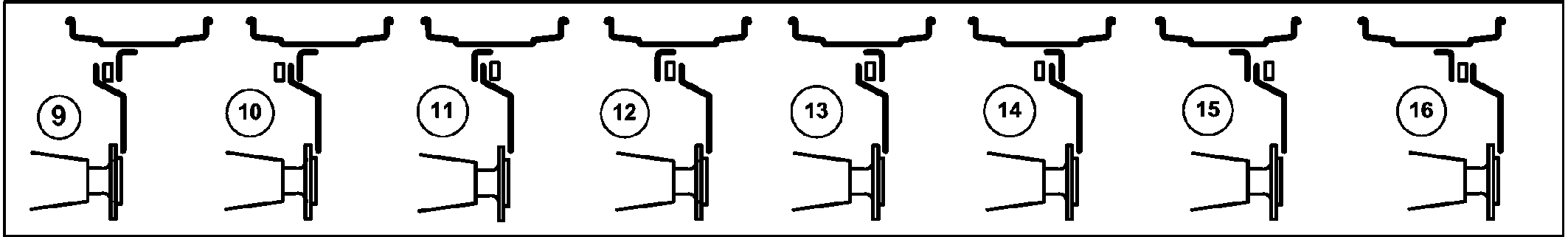

LX1053415-UN-16MAR12

Regulacja rozstawu kół tylnych z obręczami 16-położeniowymi / położenia od 9 do 16

	Ustawienie rozstawu kół przy dostawie	Ustawienie rozstawu kół (tylnych) Układ obręczy i tarcz kół								Ciągnik
Opony:		9	10	11	12	13	14	15	16	6105M	6115M 6125M
13.6-46 -R2	1613 mm	1516 mm	1486 mm	— **	— **	— **	— **	— **	— **	—	X
	(63.50 in.)	(59.68 in.)	(58.50 in.)
13.6R38	1816 mm	1516 mm	1486 mm	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.68 in.)	(58.50 in.)
16.9R24	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
16.9R30	1710 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(67.32 in.)
16.9R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
16.9R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
18.4R26	1612 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(63.46 in.)
18.4R30	1710 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(67.32 in.)
18.4R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
18.4R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
340/85R38	1816 mm	1516 mm	1486 mm	1446 mm	— **	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.68 in.)	(58.50 in.)	(56.93 in.)
380/80R38	1816 mm	1516 mm	1486 mm	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.68 in.)	(58.50 in.)
420/85R24	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
420/85R30	1710 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(67.32 in.)
420/85R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
420/85R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
460/85R26	1612 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(63.46 in.)
460/85R30	1710 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(67.32 in.)
460/85R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
460/85R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
480/70R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
480/70R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
520/70R34	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
520/70R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
540/65R34	1812 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.34 in.)
540/65R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
600/65R38	1816 mm	— **	— **	— **	— **	— **	— **	— **	— **	X	X
	(71.50 in.)
270/95R48	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.76 in.)	(58.58 in.)	(56.93 in.)	(55.75 in.)
300/95R46	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.76 in.)	(58.58 in.)	(56.93 in.)	(55.75 in.)
340/85R48	1816 mm	1518 mm	1488 mm	1446 mm	— **	— **	— **	— **	— **	X	X
	(71.50 in.)	(59.76 in.)	(58.58 in.)	(56.93 in.)
* Całkowita szerokość pojazdu powyżej 2,55 m (100 in.); trzeba przestrzegać lokalnych przepisów ruchu drogowego. ** Montaż w tym położeniu jest niedozwolony

WAŻNE: Stosować się do instrukcji regulacji rozstawu kół tylnych z obręczami 16-położeniowymi.

WSKAZÓWKA: W niektórych krajach całkowita szerokość pojazdu nie może przekraczać 2,55 m (100 in.) podczas jazdy po drogach publicznych.
