Roof Hatch

LX1033620-UN-14APR04

LX1033621-UN-14APR04

LX1033622-UN-14APR04

A - Locking lever

B - Cover

C - Retaining clip

D - Narrow angle

E - Wide angle

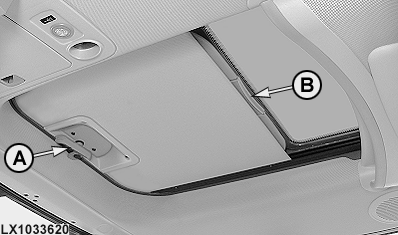

The roof hatch can be opened and closed by means of lever (A).

If the roof hatch is equipped with a glass panel, direct sunlight can be prevented from entering by using cover (B).

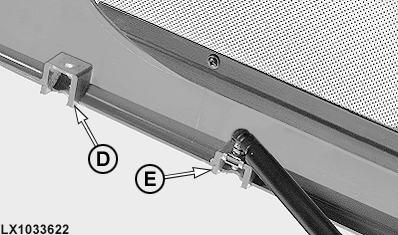

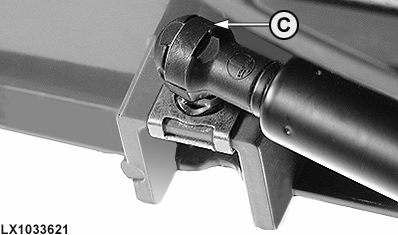

The roof hatch can be adjusted to a narrower or wider angle. To adjust the angle, remove retaining clip (C), pull gas spring from its retainer and remove retainer. Install retainer in the desired position (D) or (E), re-install gas spring to retainer and secure with the clip.
