Operate the Foldable ROPS

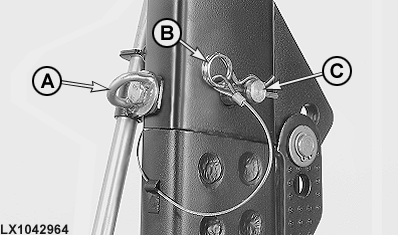

LX1042964-UN-09JUL07

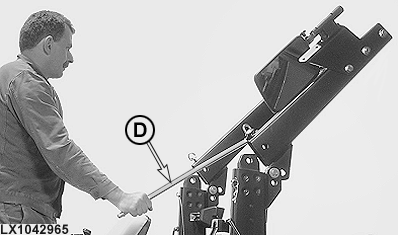

LX1042965-UN-09JUL07

A - Screws

B - Quick-release pins

C - Pins

D - Handle

CAUTION: If the tractor is ever operated for a short time with the ROPS folded (e.g. to enter a low building), drive with extreme caution. Do NOT wear the seat belt with the ROPS lowered.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

Slacken cap screws (A) on both sides. Take out the quick-release pins (B) at both sides, and remove pins (C) at both sides. Use handle (D) to lower the ROPS carefully to the rear.

Secure the ROPS at both sides with pins (C) and quick-release pins (B).
