Engage the Differential Lock

LX1042975-UN-06JUL07

CAUTION: Do not attempt to turn the tractor with the differential lock engaged.

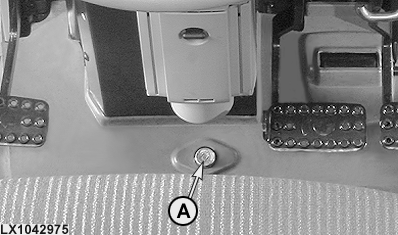

If wheel slip varies greatly between rear wheels, engage differential lock by means of button (A) (only if the difference in speed is not too high). Disengage differential lock by pressing the brake pedal or by pressing button (A) again.

If tractor speed exceeds 23.3 km/h (14.5 mph) with the differential lock engaged, the differential lock switches off automatically.

When tractor speed drops below 23.3 km/h (14.5 mph) again, the differential lock must be engaged manually by the operator.
