Adjust the Fixed Fenders

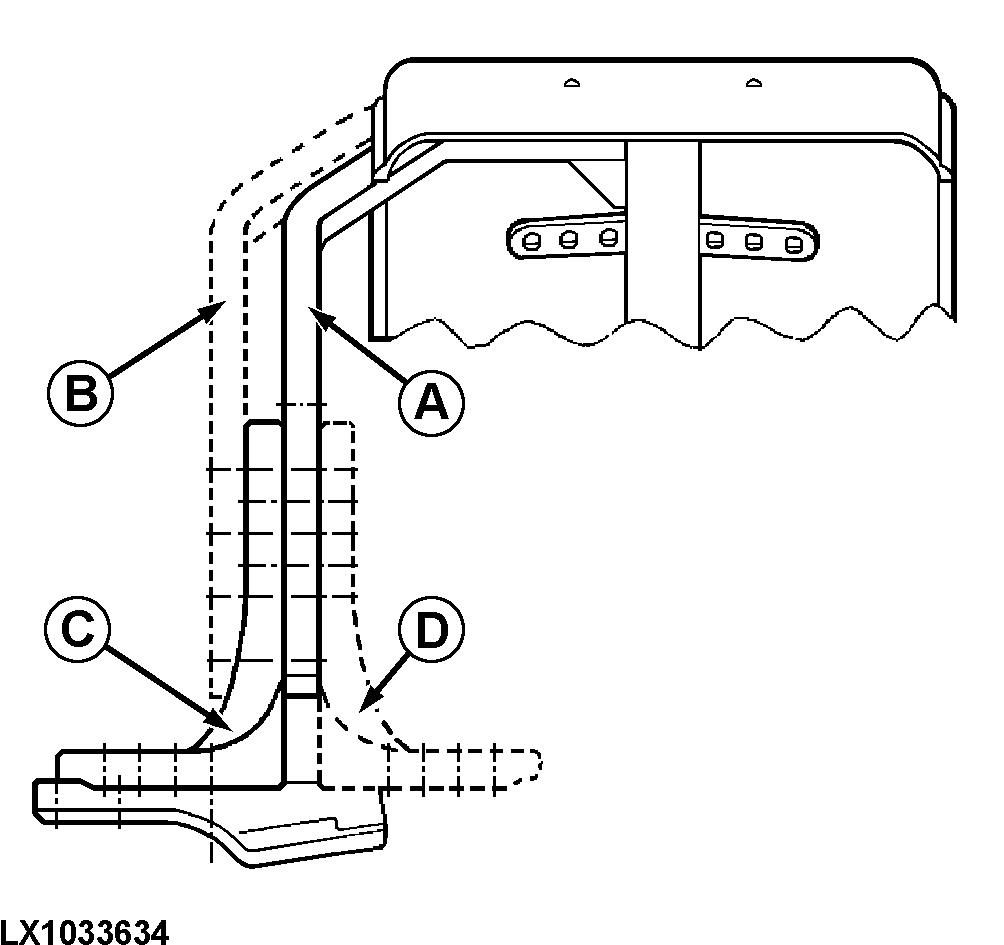

LX1033634-UN-08AUG06

A - Support to base plate (wheel side)

B - Support to base plate (tractor side)

C - Base plate (tractor side)

D - Base plate (wheel side)

The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size. To do so, proceed as follows:

1.

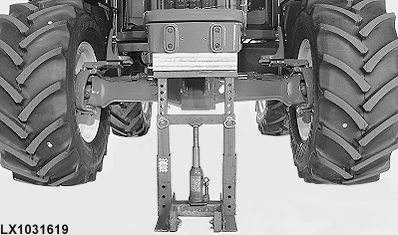

   LX1031619-UN-31MAY06

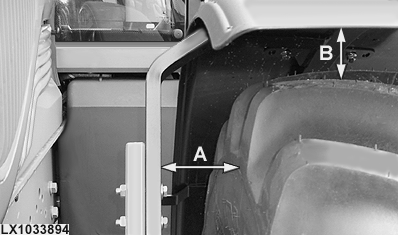

   LX1033894-UN-11MAR04

   Raise front of tractor so that the front wheel drive axle can pivot completely freely.

---




2. Turn steering wheel in both directions and pivot the axle to determine the most suitable fender mounting position.

3. Adjust fender position so that the minimum clearances (see illustration) are met. There must not be any contact with the tractor frame.

   A = 40 mm (1.57 in.)¹, B = 60 mm (2.36 in.)¹

   IMPORTANT: If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) has to be 100 mm (3.94 in.).

4.

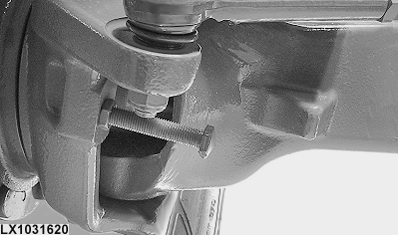

   LX1031620-UN-24APR06

   Also adjust the steering stop to make sure that the wheel or the fender does not come into contact with tractor components (e.g. the tank).

---

Tighten the screws to the following torque values:

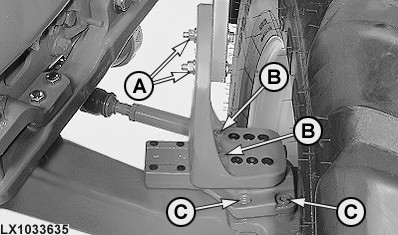

LX1033635-UN-10MAY04

A - Cap screws, support to base plate

B - Cap screws, base plate to base

C - Hex. socket screws, base to knuckle housing

Screws (A)..............	140 Nm (105 lb-ft)
Screws (B)..............	140 Nm (105 lb-ft)
Screws (C)..............	190 Nm (140 lb-ft)
