Adjust the Pivoting Fenders

LX1038316
LX1038316-UN-08AUG06

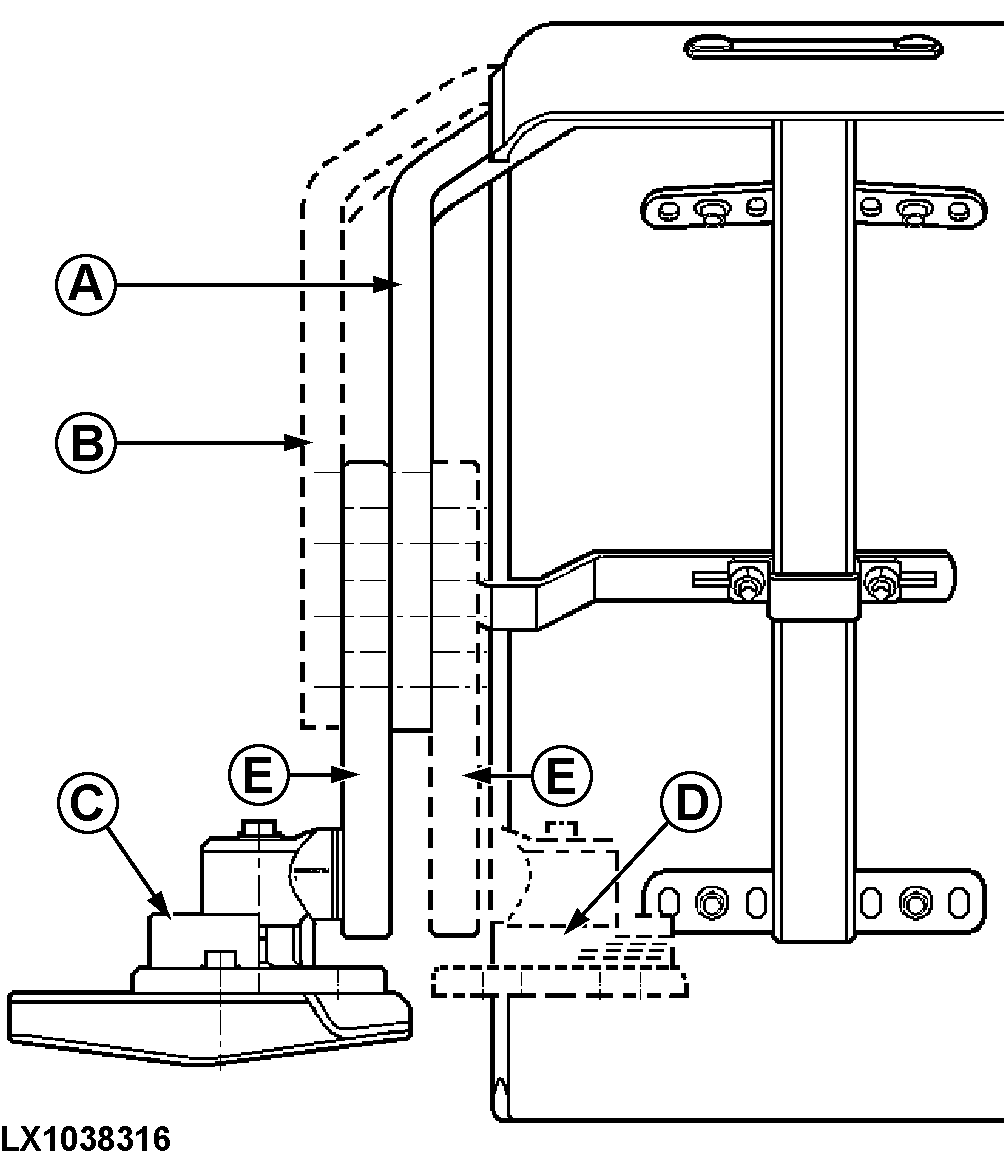

A - Support to adjusting arm (wheel side)

B - Support to adjusting arm (tractor side)

C - Pivot plate (tractor side)

D - Pivot plate (wheel side)

E - Adjusting arm


The fenders may be adjusted individually. Several adjusting positions are possible. Tilt, width and height of the fenders can be adjusted depending on tire size. If the intention is to change between positions C and D, turn the part around (do NOT install it on the other side of the tractor). Then adjust the front-to-rear angle of adjusting arm (E). To make the adjustment, follow this procedure:

  1. LX1031619
    LX1031619-UN-31MAY06

    LX1033894
    LX1033894-UN-11MAR04

    Raise front of tractor so that the front wheel drive axle can pivot completely freely.



  2. Turn steering wheel in both directions and pivot the axle to determine the most suitable fender mounting position.

  3. Adjust fender position so that the minimum clearances (see illustration) are met. There must not be any contact with the tractor frame.

    A = 40 mm (1.57 in.)1, B = 60 mm (2.36 in.)1

    IMPORTANT: If snow chains are installed on the tires, the minimum distance from the tires to the fenders (side wall to fender and running surface to fender) has to be 100 mm (3.94 in.).

  4. Adjust fender stop to prevent it from being seized at the edges with steering wheel fully turned and axle pivoting. Make sure that the stop contacts the tractor frame before the fender can hit the frame.

  5. LX1031620
    LX1031620-UN-24APR06

    Also adjust the steering stop to make sure that the wheel or the fender does not come into contact with tractor components (e.g. the tank).




Tighten the screws to the following torque values:

LX1033893
LX1033893-UN-11MAR04

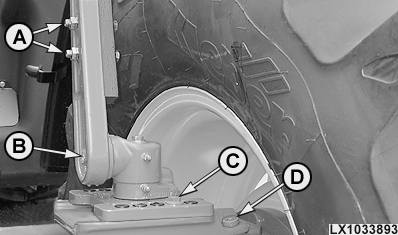

A - Cap screws, support to adjusting arm

B - Cap screw, adjusting arm to joint

C - Cap screws, pivot plate to base

D - Hex. socket screws, base to knuckle housing

Screws (A)..............

140 Nm (105 lb-ft)

Screw (B)..............

300 Nm (220 lb-ft)

Screws (C)..............

140 Nm (105 lb-ft)

Screws (D)..............

190 Nm (140 lb-ft)

1 Europe only. In non-European countries, a minimum clearance of 25 mm (1.0 in.) is recommended.
