Opening Service Doors

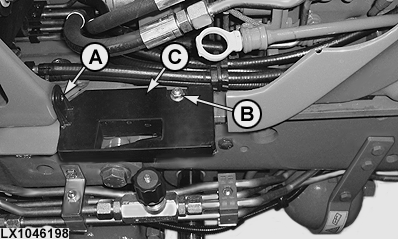

LX1046198-UN-14JUN11

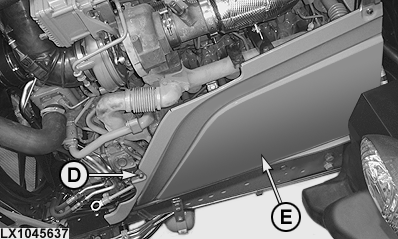

LX1045637-UN-01OCT10
A - Screw
B - Nut
C - Shield
D - Screw
E - Service Door
Remove screw (A) and nut (B).Remove shield (C).
Take out screws (D).
Remove service door (E).
|
OULXA64,000262A-19-20110614 |
