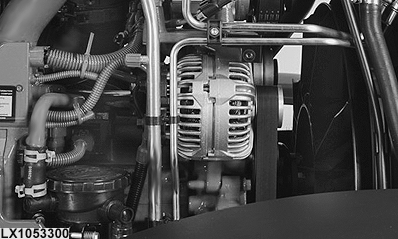

Important Instructions Regarding Alternator

LX1053300-UN-20SEP11

NOTE: The alternator is equipped with overvoltage protection.

With the engine running, do not short-circuit or ground the alternator even momentarily.

Connect battery and charger with the correct polarity. If they are improperly connected (+) and (—), the rectifier diodes will be destroyed immediately.

IMPORTANT: Cable of a slave battery or battery charger must be connected only to the poles provided for this purpose.

With battery disconnected, insulate the positive battery cable (+) properly to protect the alternator from damage.

See also Starting the Engine With a Slave Battery in Section 40.

Before carrying out repairs on electrical system, disconnect battery ground strap (—). This will avoid the danger of a short circuit.
