Front PTO - Change Oil and Oil Filter (if equipped)

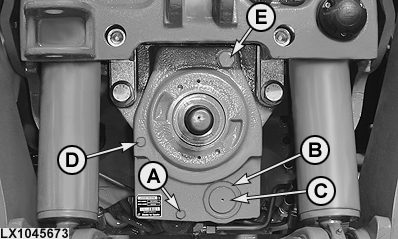

LX1045673-UN-26OCT10

NOTE: If swarf or similar particles become apparent, the PTO clutch must be reconditioned by your John Deere dealer.

Remove screws (D) and (E).

Remove snap ring (B) and cover (C).

Replace the oil filter.

Put a new seal ring on cover (C) and make sure it is seated correctly.

Install cover (C) and snap ring (B).

Remembering to include a new seal, install the oil drain screw and tighten to 20 N·m (15 lb.-ft.).

Add approx. 2.6 liters (0.69 U.S.gal.) of fresh transmission/hydraulic oil to the PTO housing at the bore for screw (E) until oil emerges from bore (D).

Remembering to include a new seal, install screw (D) and tighten to 20 N·m (15 lb.-ft.).

Remembering to include a new seal, install screw (E) and tighten to 40 N·m (30 lb.-ft.).
