Engine Serial Number

LX1049007-UN-02JUL10

LX1049009-UN-07JUL10

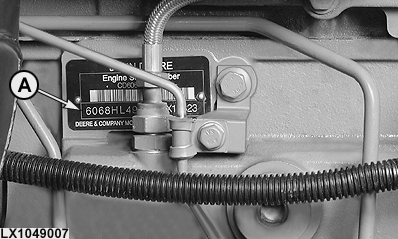

A - Engine Serial Number

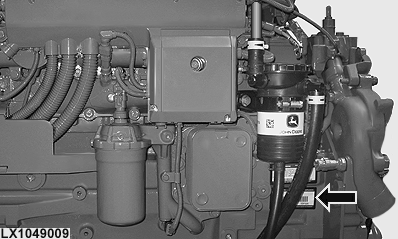

The engine serial number plate is located on the right side of the engine behind a cover. A copy of the engine serial number is located at the position shown (see arrow). This allows the number to be read without having to do any assembly work.

NOTE: Besides the engine serial number, the plate shows the engine type as well. When ordering spare parts for the engine, indicate all the numbers and letters shown on this plate.

*

*
