Serial Number of Operator's Seat

LX1033432
LX1033432-UN-02MAR04

LX1036876
LX1036876-UN-22SEP05

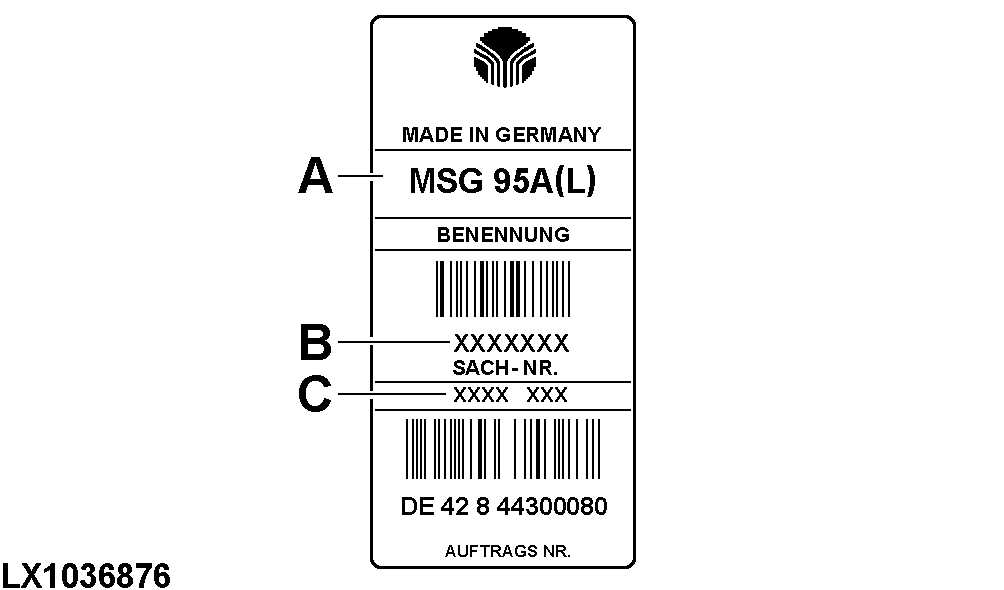

A - Designation

B - Part Number (needed when ordering)

C - Date of Manufacture (Year - Week)

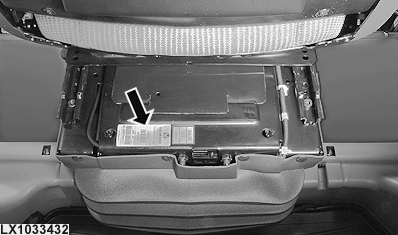

The serial number of the operator's seat is located on the back of the seat.

Explanation of serial number plate field C:

The first two digits (XXxx xx) indicate the year of manufacture.

Third and fourth digits (xxXX xx) indicate the week of manufacture.

OULXA64,00026AB-19-20101202
