Draft Links, Category 3 — Adjust Spreading Dimension

LX009470-UN-03JAN95

LX009819-UN-03JAN95

LX1046229-UN-22JUN11

LX001750-UN-05APR00

A - Flap Cover

B - Ring

C - Pin

D - Spacer

E - Draft Link

F - Sway Block

G - Groove, Category 3 (Spreading Dimension 1010 mm Measured between Center of Balls)

H - Lever

Drive tractor to the center of the implement. Remove ring (B) and lift flap cover (A). Use lever (H) to adjust spreading dimension for category 3 to 1010 mm.

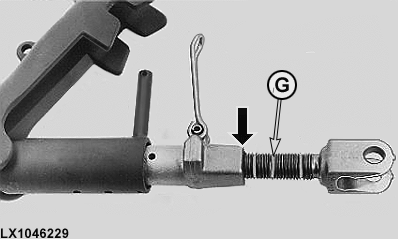

Use groove (G) as a guide for adjusting the spreading dimension (1010 mm, measured between center of balls).

Groove (G) should be aligned with the edge (see arrow).

Then locate lever (H) on pin (C), put down flap cover (A) and secure with ring (B). Finally, adjust spacer (D).

IMPORTANT: The spreading dimension must be large enough to prevent the draft links (E) from getting caught on sway blocks (F). If not, mechanical damage may occur.

IMPORTANT: If telescopic draft links are equipped, or conversion from category 3N to category 3 is being performed, the position of the wear plates must be changed from inside to outside. See "Adjust Telescopic Draft Links for Category 3 or 3N" on the following pages.
