Front PTO

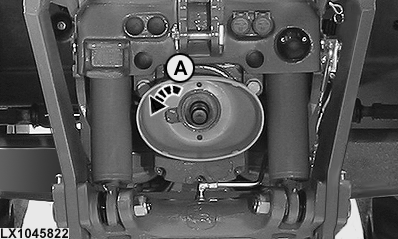

LX1045822-UN-01FEB11

A - Direction of Rotation

CAUTION: The counterclockwise-rotating front PTO uses a stub shaft with six splines and operates at a rated speed of 1000 rpm (engine speed 1969 rpm).

IMPORTANT: The front PTO may drive implements only if their power input never exceeds 80 kW (109 PS; 107 hp).

NOTE: If the PTO switches off automatically and cannot be restarted immediately, comply with the relevant diagnostic trouble codes. If there is high resistance to starting or if the oil is very cold, this is registered by the control software and the PTO is switched off. The PTO cannot be restarted until 30 seconds have elapsed.
