Install Front Weights

LX1046219-UN-22JUN11

LX1046220-UN-22JUN11

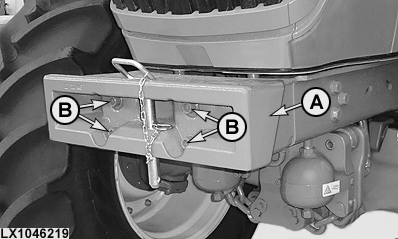

A - Basic Weight

B - Fixing screws

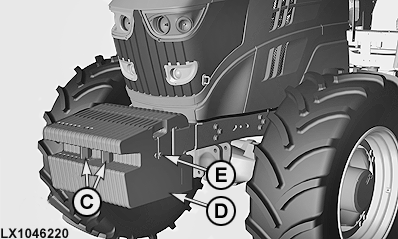

C - Jaw

D - Additional Weights

E - Screws

One basic weight (A) and up to 18 additional weights (D) may be installed.

IMPORTANT: Tighten the attaching screws (B) of the basic weight (A) with 600 Nm (440 lb-ft) and the screws (E) of the additional weights (D) with 230 Nm (170 lb-ft).

Up to 18 additional weights (D) may be installed on the tractor.

Different front weights are shipped and installed in the EU and North America.

Region	Weight per additional weight	Weight with 18 additional weights
EU, part no.: L38451..............	50 kg (110 lb)	900 kg (1980 lb)
North America, part no.: R127764 ..............	43 kg (95 lb)	774 kg (1710 lb)

Per 10 kg (22 lb) weight increase, the load on the front axis increases by 12 kg (26.5 lb).

IMPORTANT: When installing six or more additional weights, they have to be installed to form a jaw (C).

The jaw hitch should be used for shunting and towing on hard-surfaced roads only.
