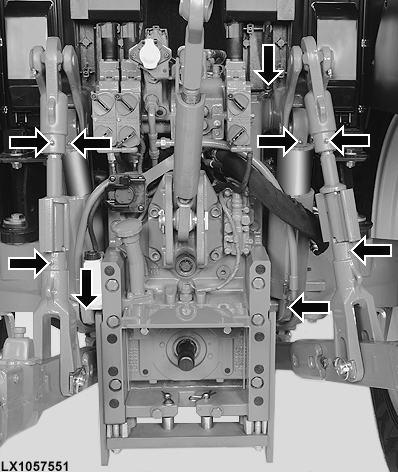

Lubricate Three-Point Hitch

LX1057551-UN-12JUL12

Lubricate grease fittings with several strokes of grease gun. Use John Deere multi-purpose grease.

NOTE: The grease fitting of the second rockshaft is not shown in the illustration.
