Front Axle without Front-Wheel Drive - Lubricate the Grease Fittings

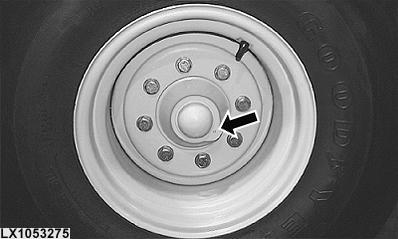

LX1053275-UN-15SEP11

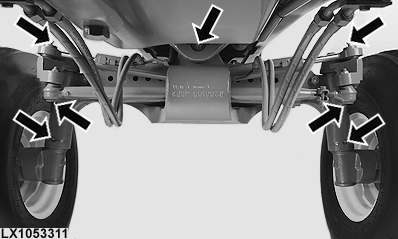

LX1053311-UN-22SEP11

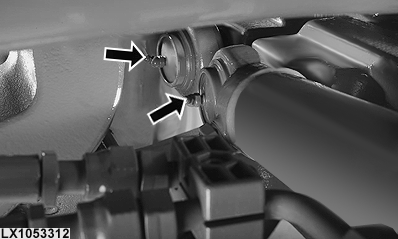

LX1053312-UN-22SEP11

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

Lubricate the grease fittings on the front axle using John Deere multi-purpose grease.

IMPORTANT: Thoroughly clean all grease fittings prior to greasing. Replace damaged grease fittings immediately.
