PTO Guard

LX1053295-UN-21SEP11

LX1049906-UN-18FEB11

TS276-UN-23AUG88

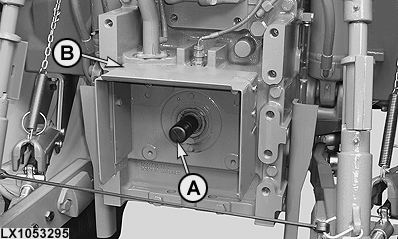

CAUTION: Remove PTO cap (A) only when the PTO is to be used.

As soon as PTO-driven implement is removed, re-install cap over PTO stub shaft.

The master shield (B) can be folded up to allow an implement to be connected, but it must be folded down again afterwards. There are various versions of PTO guard that are not shown here.

CAUTION: Never operate PTO unless the master shield is in the position shown. Switch off the PTO before raising the implement.

CAUTION: Before using the PTO, the maximum permissible angle of articulation on the drive shaft must be ascertained. During operation, there must be no contact between the PTO guard and the drive shaft. This is particularly important when turning corners.

With Type 3 PTOs (dia. 45 mm, 20 splines), clearance in the area of the PTO guard may be restricted. Bear this in mind when operating; avoid unnecessary damage.

When connecting the PTO, wear gloves.

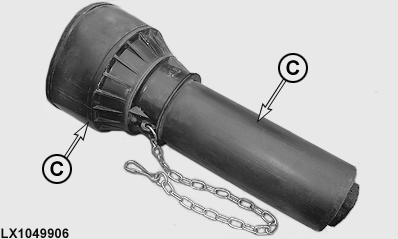

CAUTION: Always put a guard (C) on the drive shaft and take action to prevent it from turning with the shaft. Do not operate the drive shaft unless a guard is installed that covers the PTO shaft completely and does not turn with the shaft.
