Coolant Heater

LX1053430
LX1053430-UN-29MAR12

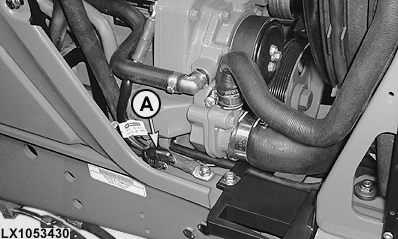

Connect connector (A) of coolant heater (B) to a 110-volt power source.

NOTE: If equipped, the transmission oil preheater and charge pump preheater are also operated by means of connector (A).

At an ambient temperature of -15°C (5°F), the heating process takes approx. 2 hours. Extend the heating period if ambient temperature is lower.

IMPORTANT: Pay attention to regional differences in the power grid.

OULXA64,0002888-19-20120403
