Jack Up the Tractor - Lifting Points

The illustrations show the recommended lifting points for jacking up the tractor. Use a stable jack with sufficient lifting force. See Specifications, Loads and Weights in Section 145.

LX1057721-UN-15JUN12

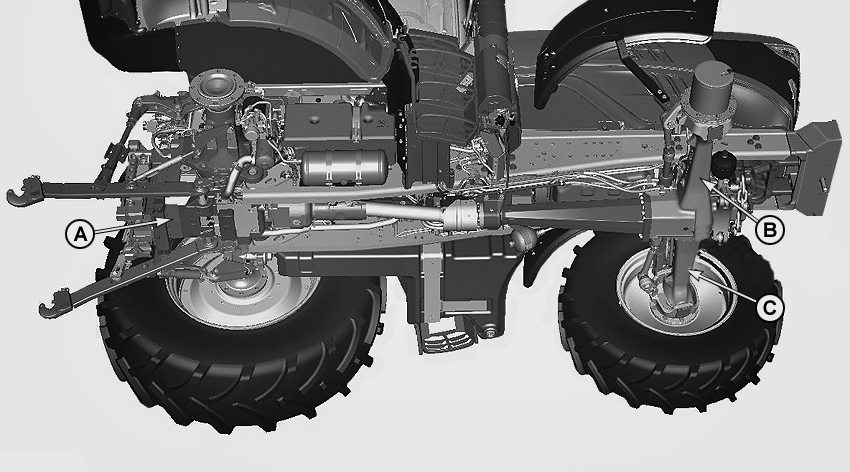

A - Raise Rear of Tractor, e.g. to Remove Rear Wheel

B - Raise Right End of Axle, e.g. to Remove Right Front Wheel

C - Raise Left End of Axle, e.g. to Remove Left Front Wheel

LX1049889-UN-11FEB11

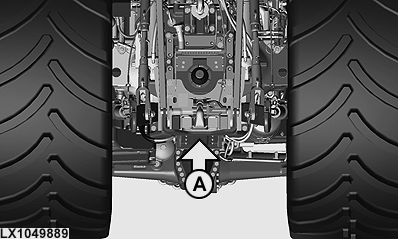

With Hydraulic Pick-Up Hitch

LX1049892-UN-11FEB11

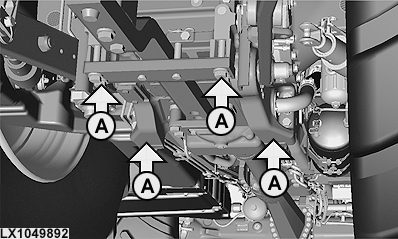

Without Hydraulic Pick-Up Hitch

LX1057720-UN-15JUN12

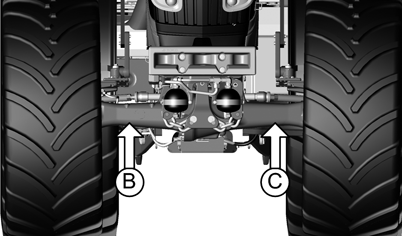

Raise Axle to Change Front Wheel

B - Raise Right End of Axle to Remove Right Front Wheel

C - Raise Left End of Axle to Remove Left Front Wheel

LX1057719-UN-15JUN12

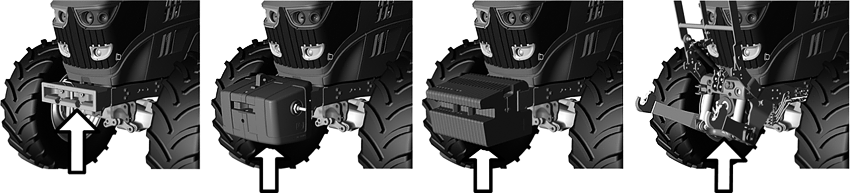

Raise Front Center of Tractor (Depending on How Tractor is Equipped)

CAUTION:

JT07211-UN-14DEC06

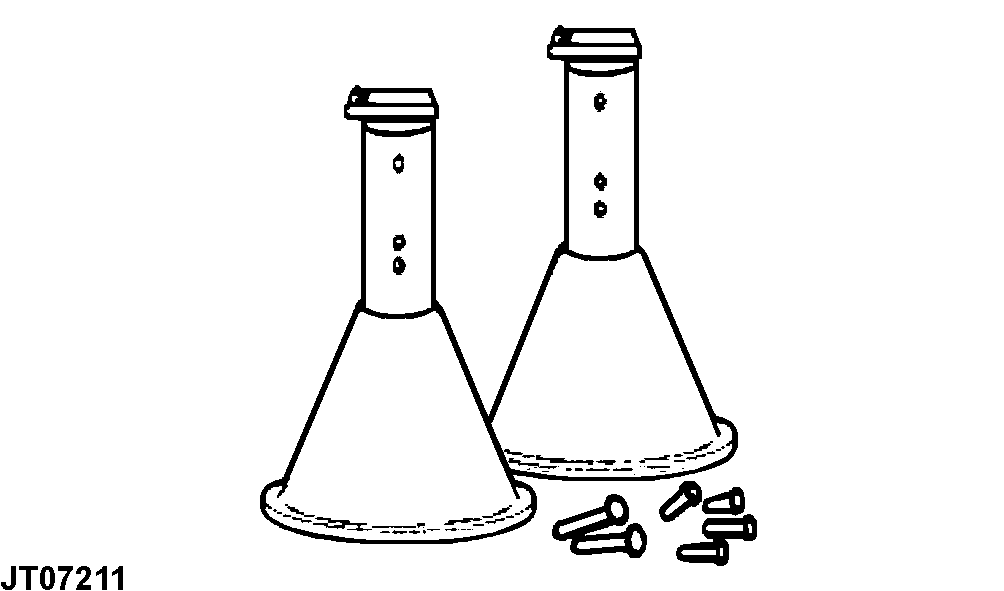

JT02043 and JT02044 Support Stands

LX1049890-UN-11FEB11

JT02043 - Support Stand, 482 to 736 mm (19 to 29 in.)

JT02044 - Support Stand, 863 to 1117 mm (34 to 44 in.)

Place a slip-resistant pad or block that is as large as possible between lifting equipment and tractor.

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable support stands. The special John Deere tools shown can be used for this purpose. These support stands are available from your John Deere dealer.
