Front Loader Implements - Front Loader Brackets for Loaders H310 and H340

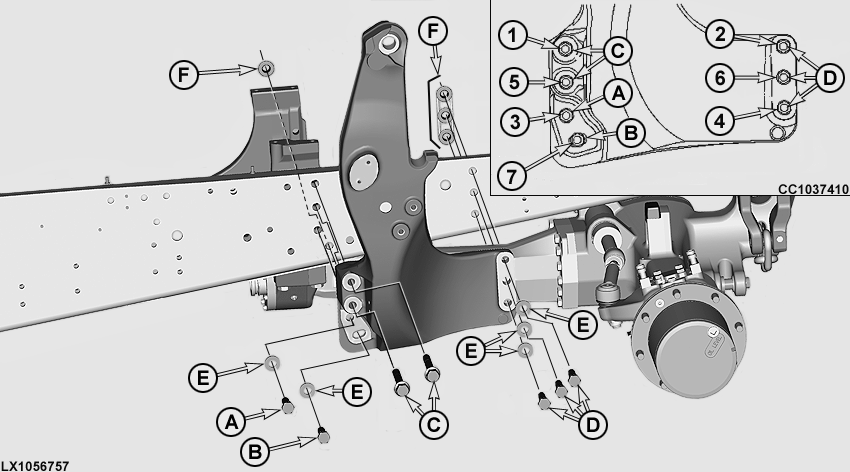

LX1056757-UN-09OCT12

Hardware used on John Deere front loader brackets
Item	Designation	Width across flats	Standard	Thread identifier	Length	Identification / Grade
A (1 piece)	Cap screw	30 mm	ISO4017	M20 x 2.5	60 mm (2.4 in.)	10.9
B (1 piece)	Cap screw	30 mm	ISO4017	M20 x 2.5	60 mm (2.4 in.)	10.9
C (2 piece)	Cap Screw with Flange	27 mm	JDS121	M20 x 2.5	160 mm (6.3 in.)	10.9
D (3 piece)	Cap screw	30 mm	ISO4017	M20 x 2.5	70 mm (2.8 in.)	10.9
E (5 piece)	Washer	—	JDS130	—	21.4 x 42 x 5	—
E (4 piece)	Hex. Nut with Flange	30 mm	ISO4161	M20 x 2.5	—	10

The front loader consoles are arranged as follows. The screws (A) and (C) are tightened with a torque of 580 N•m (428 lb-ft). The screws (B) and (D) are tightened with a torque of 620 N•m (457 lb-ft). Follow the specified order when doing so.

Check torque regularly; see Section 85, Lubrication and Periodic Service.

IMPORTANT: A front loader checked and approved by John Deere is available for purchase.

When installing the John Deere front loader consoles, use only suitable attaching elements as shown in the illustration above.

Comply also with Operator's Manual and Installation Instructions of the front loader.
