Front PTO - Check Oil Level

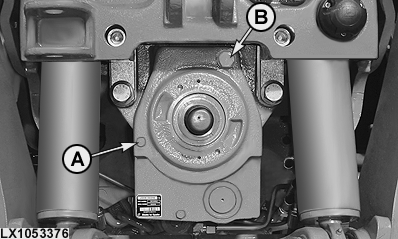

LX1053376-UN-07FEB12

Remove level plug (A). Oil must be level with drain screw bore.

NOTE: If oil smells burnt or has a very dark appearance, it needs to be changed.

Fill to proper level, if necessary. To do this, take out screw (B) and add transmission/hydraulic oil to the PTO housing at the hole for screw (B) until oil emerges from hole (A).

Remembering to include a new seal, install screw (A) and tighten to 20 N·m (15 lb.-ft.). Always use a transmission oil listed in the Fuel, Lubricants, Hydraulic Oil and Coolant section.

Remembering to include a new seal, install screw (B) and tighten to 40 N·m (30 lb.-ft.).
