Draft Link, Categories 2 and 3N — Adjust Spreading Dimension

LX009470-UN-03JAN95

LX009819-UN-03JAN95

LX1053434-UN-29MAR12

LX001750-UN-05APR00

A - Flap Cover

B - Ring

C - Pin

D - Spacer

E - Draft Link

F - Sway Block

G - Groove, Category 2 or 3N (Spreading Dimension 870 mm Measured between Center of Balls)

H - Lever

Drive tractor to the center of the implement. Remove ring (B) and lift flap cover (A). Use lever (H) to adjust spreading dimension for category 2 or 3N to 870 mm.

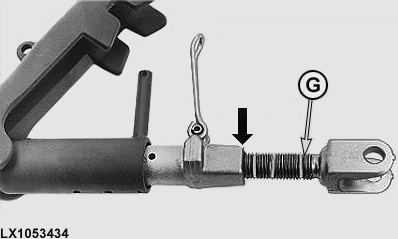

Use groove (G) as a guide for adjusting the spreading dimension (870 mm, measured between center of balls).

Groove (G) should be aligned with the edge (see arrow).

Then locate lever (H) on pin (C), put down flap cover (A) and secure with ring (B). Finally, adjust spacer (D).

IMPORTANT: The spreading dimension must be large enough to prevent the draft links (E) from getting caught on sway blocks (F). If not, mechanical damage may occur.
