Change Oil In Front-Wheel Drive Axle Housing

LX1053444
LX1053444-UN-04JUN12

LX1053445
LX1053445-UN-04JUN12

CAUTION: If the oil is hot, it may be under pressure. Remove drain screw slowly.

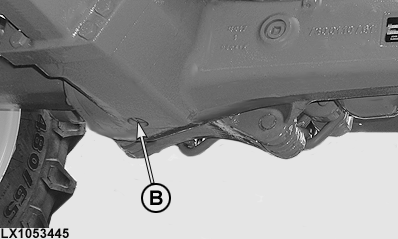

  1. Remove drain screw (B) and drain oil into a suitable container.

  2. Re-install drain screw and tighten to 90 Nm (66 lb.-ft.).

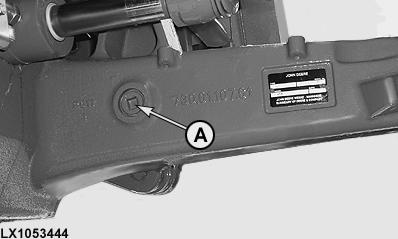

  3. Remove the filler screw (A). Fill with fresh oil. The oil level must be up to the filler hole. Re-install filler screw.

For capacities, see Specifications.

NOTE: Location of screws varies depending on axle type.

OULXA64,0002A14-19-20120604
