PowrQuad™ PLUS Transmission — Settings

LX1056690-UN-04JUL12

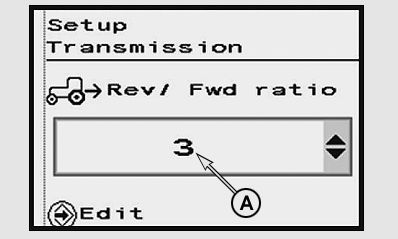

LX1056692-UN-09JUL12

Transmission Page, Forward/Reverse Ratio

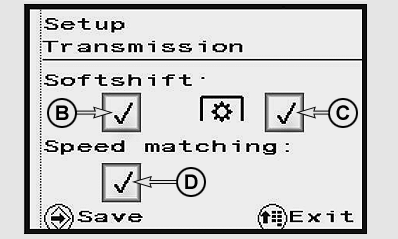

LX1056691-UN-09JUL12

Transmission Page, Settings

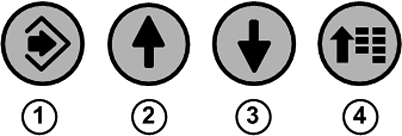

1 - Confirm Button

2 - Up Arrow Switch

3 - Down Arrow Switch

4 - Menu Button

B - Softshift Check Box

C - PTO Operation Check Box

D - Speed Matching Check Box

A — Select the forward/reverse ratio

The ratio can be varied between +3 and -3; this can be done at the digital display.

To do this, press menu button (4) until the transmission menu page appears.

Press confirm button (1) and select the desired ratio in input area (A) using arrow button (2) or (3).

Save selection using the confirm button.

To exit press menu button (4).

NOTE: When automatic gear shifting is activated, a set maximum gear takes priority over the selected relationship.

B — Softshift when changing gears

If this option is activated, engine speed is matched temporarily by the electronics to achieve a smoother shift.

Activate or deactivate softshift (B) as follows:

Press menu button (4) until the transmission menu page appears. Press arrow button (3) and then press confirm button (1). Activate or deactivate check box (B) using arrow button (2) or (3). Save selection using the confirm button.

If desired, activate or deactivate PTO operation (C) as follows:

Press confirm button (1) and activate or deactivate check box (C) using arrow button (2) or (3). Save selection using the confirm button.

To exit press menu button (4).

Engine speed can then be matched in the following ways:

• Switched off all the time, if (B) is not activated
• Switched on, but off for PTO operation if only (B) is activated
• Switched on all the time, if (B) and (C) are activated

D — Speed matching when changing ranges

If this option is activated, when changing ranges at travel speeds at or above approx. 7 km/h (4.4 mph), the transmission is automatically shifted into a gear that matches the travel speed. This automatic function can be overridden by pressing a gear shift switch during the change of range.

Activate or deactivate speed matching (D) as follows:

Press menu button (4) until the transmission menu page appears. Press arrow button (3) and select check box (D) using confirm button (1). Activate or deactivate check box (D) using arrow button (2) or (3). Save selection using the confirm button.

To exit press menu button (4).

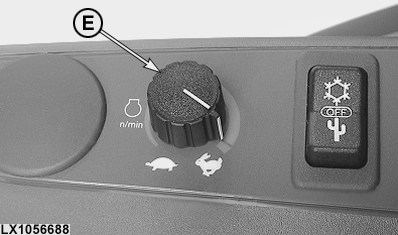

E — Cruise control potentiometer (if equipped)

LX1056688-UN-09JUL12

In the lowest setting, engine speed is limited to 1050 rpm. In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions. If no PTO operation is taking place, potentiometer (E) should be in its maximum speed position or in the “Off” position.
