Light Switches (Tractors with Cab)

LX1056630-UN-26JUN12

LX1056631-UN-05SEP12

L102655-UN-15AUG94

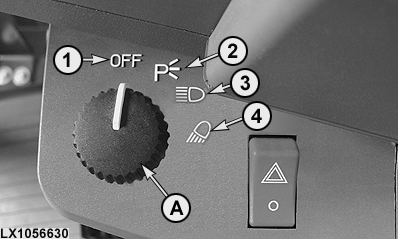

Light switch (A) can be set to the following positions:

• 1 = Light switch in off position
• 2 = Parking lights "on" (clearance and tail lights)
• 3 = Headlights “on”
• 4 = Headlights “on” and worklights can be switched on

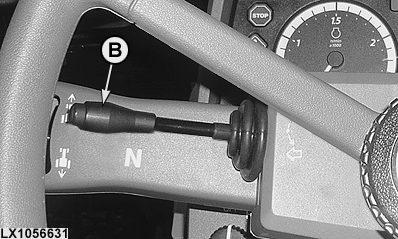

Switch headlights to “low beam” or “high beam” position using switch (B).

• Switch down = High beam
• Switch in center = Low beam
• Switch up = Headlight flasher (“flash-to-pass”)

Indicator light (C) will glow when headlight switch is in high beam position.
