Switches for Turn Signal Lights and Horn (Tractors with Cab)

Turn signal without automatic return

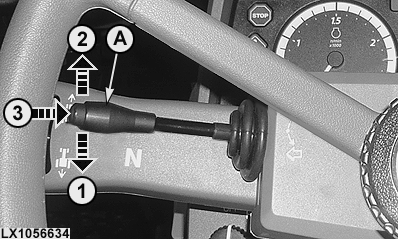

LX1056634-UN-05SEP12

Move switch (A) in the desired direction beyond the first point of resistance and let it engage. This activates the turn signal light. To switch the turn signal off, move switch (A) back to its neutral position (3).

Turn signal with automatic return¹

Move switch (A) in the desired direction beyond the first point of resistance to the detent position. Within one second (<1 sec.) move the switch back to neutral position. This activates the turn signals and shuts them off automatically after some time.

When the turn signal switch is again moved in the same direction to the detent position and moved back to the neutral position within one second (<1 sec.), flashing of lights is stopped.

When the turn signal switch is moved to the detent position in the opposite direction and moved back to the neutral position within one second (<1 sec.), automatic turn-signal return is activated for the other direction.

The flashing time depends on how many trailers are pulled by the tractor.

• no trailer = 50 meters
• 1 trailer = 70 meters
• 2 trailers = 90 meters

Horn

Press switch (A) towards the steering column. The horn sounds continuously until switch (A) is released.
