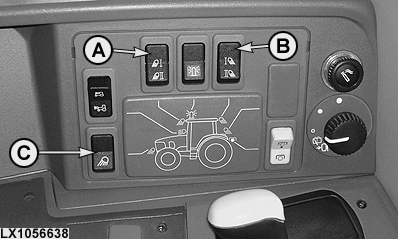

Worklight Switches (Tractors with Cab)

LX1056638-UN-27JUN12

A - Front Roof Worklights

B - Rear Roof Worklights

C - Front Corner Worklights (If Equipped)

The worklights can be switched on and off using the switches shown here. The main light switch must first be set to position 4.
