Air Comfort Seat MSG95AL

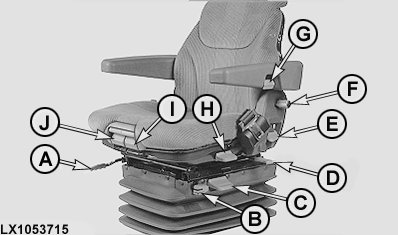

LX1053715-UN-29JUN11

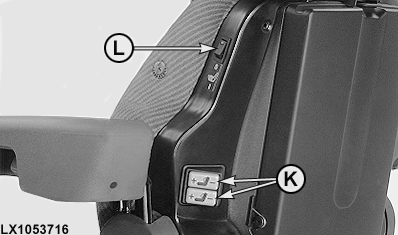

LX1053716-UN-29JUN11

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

• A — Fore/aft adjustment

Pull lever (A) and move the seat to the desired position. Let the lever click into place.

• B — Adjust fore/aft suspension

• Lever (B) to the front - no fore/aft suspension
• Lever (B) backward - fore/aft suspension active

• C — Weight adjustment

The operator's seat must be occupied in order to adjust it to the operator's weight. Start the engine, allow the seat to settle, then pull lever (C) up briefly. The seat adjusts itself automatically to the weight of the operator.

NOTE: The operator's seat can be set for a weight of 50 to 130 kg (110 to 285 lb).

• C — Height adjustment

After the weight adjustment has been made, the seat can be adjusted to any height. To adjust the height, pull lever (C) upward as high as it will go or push it down. If the top or bottom limit is reached during height adjustment, automatic height adjustment takes place to ensure a minimum amount of travel up and down (suspension).

• D — Adjust lateral suspension

• Lever (D) forward - Lateral suspension active
• Lever (D) backward - No lateral suspension

• E — Adjust tilt of backrest

Pull lever (E) and move the seat backrest to the desired angle. Let the lever click into place.

• F — Adjust height of armrests

Knob (F) allows the height of the armrests to be adjusted to any of 5 positions.

• G — Adjust tilt of armrests

Knob (G) allows armrest tilt to be adjusted (infinitely variable). To lower the armrest by 30°, press the armrest tilt adjuster (G) into the armrest.

• H — Adjust swivel

IMPORTANT: Use the swivel to the left only for entering and exiting.

The seat swivel is operated by means of lever (H) as follows:

Pull up the lever and the seat can swivel freely to the left and right by 15°. To lock, press the lever down and seat snaps into place at the next 7.5° position.

NOTE: On versions with a multi-function lever on the armrest, swivel the operator's seat to the left only by 7.5°. Avoid collisions with the steering wheel.

• I — Adjust seat tilt

Pull handle (I) up and move the seat to the desired angle. Let the handle click into place.

• J — Adjust seat cushion

Pull handle (J) up and move the seat cushion to the desired position. Let the handle click into place.

• K — Adjust lumbar support on backrest

Use rocker switches (K) to adjust the position of the lumbar support.

• L — Seat heater

Switch (L) is for switching the seat heater on and off.
