Light Switches (Tractors without Cab)

LX1056650-UN-27JUN12

L102655-UN-15AUG94

CAUTION: Comply with local lighting regulations.

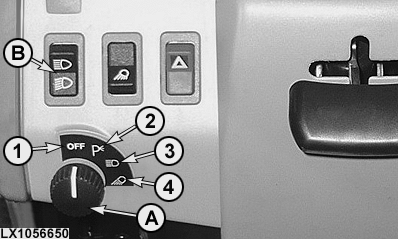

Light switch (A) can be set to the following positions:

• 1 = Light switch in off position
• 2 = Parking lights "on" (clearance and tail lights)
• 3 = Headlights “on”
• 4 = Headlights “on” and worklights can be switched on

Switch headlights to “low beam” or “high beam” position using switch (B).

• Switch down = low beam
• Switch up = high beam

Indicator light (C) will glow when headlight switch is in high beam position.
